Specification:

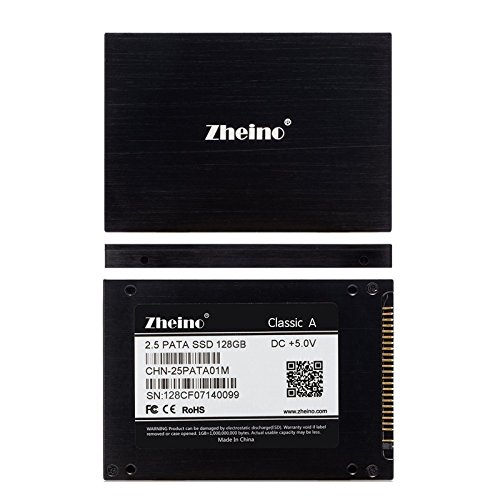

Model number:CHN-25PATA01M-128
Capacity: 128GB
Interface:2.5 inch PATA/IDE 44Pins
Shell Made Of Aluminium Alloy
Flash Memory : MLC (Not TLC or 3D NAND Flash)
Controller: SMI2236
Dimension: 3.93in X 2.76in X 0.37in / 100mm X 70mm X 9.5mm
Read speed : 116MB/s
Write speed :80MB/s
Operating Temp:32℉~158℉/ 0℃~70℃
Warranty:3 YearsÂ
Endurance & ECC:
Write endurance: >8 years @ 100GB write/ day
Read endurance: unlimitedÂ
MTBF: 1,000,000 Hours
ECC (Error Correction Code): Supports BCH 8/16/24/40 bits ECC
Warm tips
1. It will be damage by misusing, So keep it away from water, dirt, and high temperature.
2. Because there is a different storage-algorithm between manufacture and windows system/other prevailing computer’s system, the actual capacity will be slightly smaller than nominal capacity.
Storage device conversion formula: nominal capacity X93% = actual capacity.
Capacity: 128GB ,Interface: 2.5 Inch PATA/IDE 44Pins
Read/write speed : 116MB/s, 80MB/s
Flash Memory : MLC
Dimension: 3.94in X 2.76in X 0.37in / 100mm X 70mm X 9.5mm
Warranty:3 Years
