YQZH-US-40 3G-SDI to HDMI Video Adapter Converter Over Single 75ohm BNC Cable – Connect your HDMI Display to an SDI Video Source

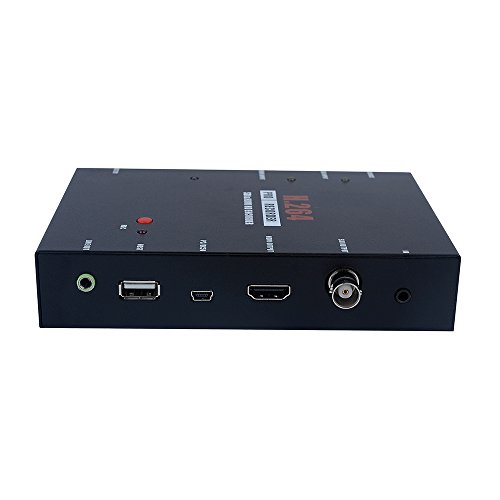

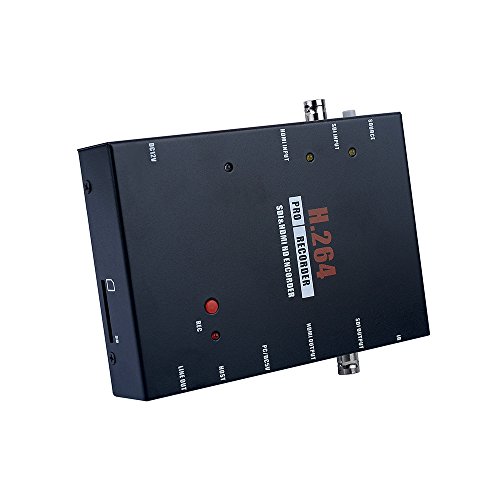

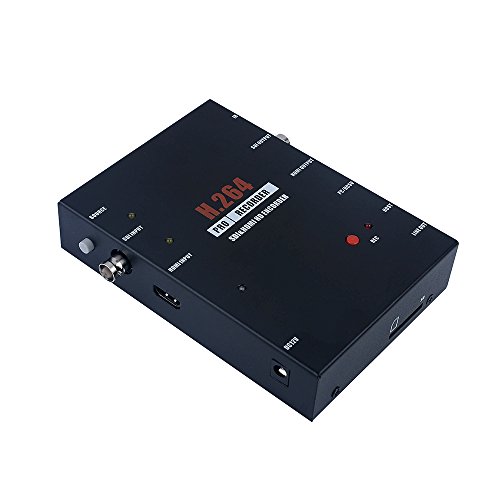

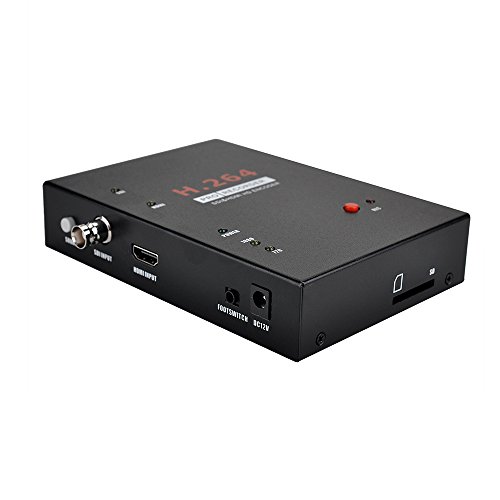

The HD Video Capture allows you to select between SDI, HDMI and analog component video inputs. You can choose to record audio from the SDI, HDMI Devices. The SDI and HDMI input connections automatically switch between all formats so you can connect H.264 Pro Recorder directly to devices such as HDCAM, Digital Betacam, Betacam SP decks, DVD players and more!

The Mini. Requirements
SD Cards Requirements:
Speed: Class 10 or Higher
Formats: Only FAT32 Supported
Supported Types: SDHC, SDXC

USB Storage Requirments:
Max. Capacity: 2TB (USB Flash, SSD, HDD)
Formats: FAT or FAT32

Supported Input/Pass-through Resolution
720×480 (60p),720×576 (50p),1280x720p (50p),
1280x720p(60p),1920×1080(50i),1920×1080(60i),1920×1080(24p),1920×1080(25p),
1920×1080 (30p),1920×1080(50p),1920×1080(60p)

Supported Resolution
720×480 (60p),720×576(50p),1280x720p(50p),
1280x720p(60p),1920×1080(50i),1920×1080(60i),1920×1080(24p),1920×1080(25p),
1920×1080(30p),1920×1080(25p),1920×1080(30p)
Note:Upscaling is not supported.

Record format: Video H.264, Audio:AAC Stereo
Record quality:Max:18Mbps@1080P 30fps
Record file:Max:2GB per file, with RTC(Real Time clock)
Record place: MAX:140MB/Minute,8.4GB/Hour.
Power supply: DC12V/3A

Supports Capture SDI or HDMI Signal to SD Card(FAT32,SD,SDHC,SDXC), USB Storage Device, or to Computer
SD Card Requirments: Class 10+ SD Card (Max.64GB,FAT32 Formatted) USB Device Requirments: Max. 2TB, FAT/FAT32
Designed for Industry HD Camera, HD Medical Endoscope or TV, GamePlay etc.
Maximum Recording Resolution: 1080p 30fps, 18Mbps (MP4, AAC Stereo)
Supports Convenient One-Button Record or Switch Button Record (Switch Devices Not included)
