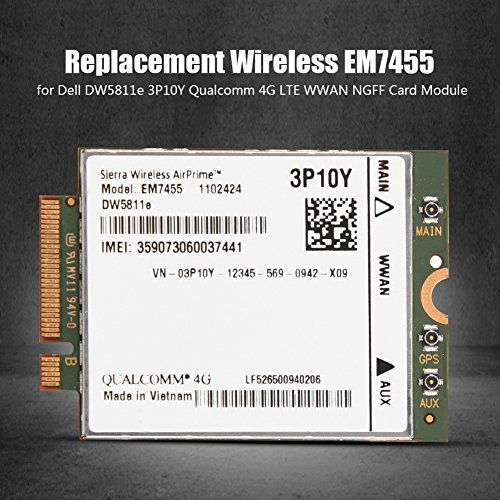

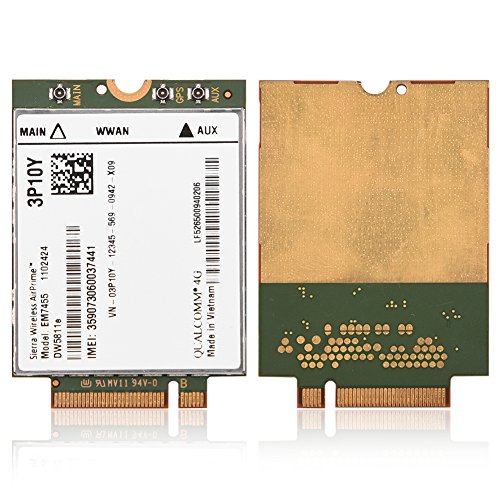

Wireless Card Module, Replacement Wireless EM7455 for Dell DW5811e 3P10Y Qualcomm 4G LTE WWAN NGFF Card Module

Specifications:
Category: 4G Module
Chipset: Qual comm
Form Factor: PCIe M.2
Pins: 52-pin
Frequency bands:
– LTE FDD: Band B1-B5, B7, B12, B13, B17, B20, B25,B26, B29, B30, B41
– UMTS/HSPA+: B1, B2, B3, B4, B5, B8
Technologies: UMTS, HSDPA, HSPA+, LTE
Max Download Speed: 300 Mbps
Max Upload Speed: 50 Mbps
Temperature: -10 ℃ to 55 ℃
Certifications/Regulatory: Planned: FCC, IC, CE, NCC, GCF, PTCRB
Carriers Approved: Planned: AT&T, Verizon, Sprint, Vodafone, Telefonica, Orange
Connectors: Main, Aux/GNSS, GNSS
Satellite Systems: GPS, Glonass, Beidou, Galileo
Modes: Standalone, SUPL 2.0, XTRA 3.0
Control Options: APIs, AT Commands
Voltage: 1.8V
Active Antenna Control: 4 pin
Dynamic Power Control: 1 pin
Interfaces: USB 3.0, USB 2.0 High Speed
SIM interface: 2 x 1.8V or 3V
Audio: PCM/I2S
Other interfaces: Main Radio Disable, GNSS Disable, Flash LED Output, Wake on WAN, Reset

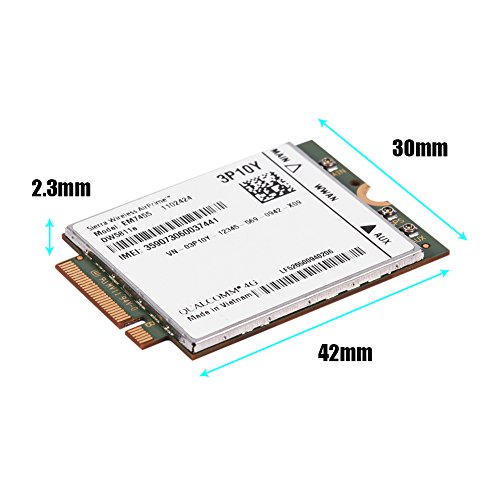

Dimensions: 42 x 30 x 2.3 mm
Package Weight: About 7g

Compatible for Dell:
For DELL Latitude 14 7000 Series E7470
For DELL Latitude 12 7000 Series E7270
For DELL Latitude 13 7000 Series E7370
For DELL Latitude 15 5000 Series E5570
For DELL Latitude 14 5000 Series E5470

Package List:
1 * Wireless EM7455 4G LTE Module

Note:
● Item color displayed in photos may be showing slightly different on your computer monitor since monitors are not calibrated same.
● Product’s size made for manual measurement,  1-2CM error belongs to the normal range.


LTE Support (North America / EMEA) -B1 (2100 MHz), B2 (1900 MHz), B3 (1800 MHz), B4 (1700 MHz AWS), B7 (800 MHz-DD), B7 (800 MHz-B), B7 (2600 MHz), B8 (900 MHz), B8 (900 MHz), VITAMIN B12.
B25 (1900 MHz), B26 (850 MHz), B29 (700 MHz-D block), B30 (2300 MHz), B41.
HSPA + Support Band (Global) -B1 (2100 MHz), B2 (1900 MHz), B3 (1800 MHz), B4 (1700 MHz AWS), B5 (850 MHz), B8 (900 MHz).
Best replacement for your cracked / damaged / faulted Module Card.
Installation instruction is not included and professional installation is recommended.
