VideoSecu Articulating TV Mount Large Big Heavy Duty Swivel Tilt Wall Mount Bracket for Most 60″ 62″ 65″ 70″ 75″ 78″ 80″, Some Models up to 85″ 90″ LED LCD Plasma TV- Dual Arm pulls Out up to 25″ 1YE

The VideoSecu full motion articulating mount MP830B is designed for large size LCD LED Plasma flat panel screen display. Constructed with high gauge steel, it handles screens as much as 176lbs. This articulating mount supports TV VESA as much as 900x600mm. Dual arm design allows 140 degree side-to-side swivel (The max degree is depending on your display size), 15 degree forward and backward tilt and extends the flat panel screen as much as 25″ from wall for perfect view positioning and reduce glare. The wall plate is 22.8″ wide, allowing it to be mounted into two standard wood studs 16″ apart. Post installation level adjustment allows 6 degree rotation for perfect level in different view angles. How to verify the mount compliance with your selected display? First, the weight of your display will have to be lower than 176lbs. Next, mounting holes distance at the rear of TV will have to be lower than 36.6″ (930mm) horizontally and 25.1″ (640mm) vertically. Last, Your TV will have to be no less than 36.6″(W) x 25.1″(H) Differently, you’re going to see the bracket.
Notice: This mount fits most 60-80″ TVs (VESA hole patterns from 200 x200 mm (8″x8″) to 930×640 mm(36.6″x25.1″)), some as much as 85 90 inch TVs manufactured in latest 3 years

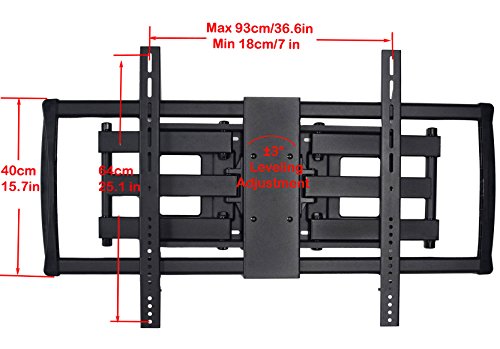

Fits most 60″- 80″ display with Mounting hole pattern from 200 x200 mm (8″x8″) to 930×640 mm(36.6″x25.1″)

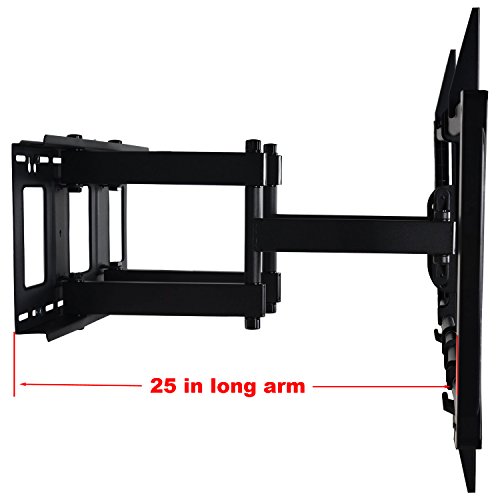

Heavy duty mount supports display as much as 176 lbs; Arm fold 2.75″ or extend as much as 25″
Adjustable tilt +/-15 degrees and swivel side-to-side for comfortable viewing angle
Post-installation level adjustment allows the TV to perfectly level
Standard mounting hardware included
