USB 2.0 Video Audio Capture Card Adapter VHS VCR TV to DVD Converter support Window, Mac, Linux

Note: If it shows not read frame situation like blue screen or blurred screen when recording, we suggest you check by two steps, first check if the wiring is right, for example, whether the redio, video be inversely connected. Secondly, if there is external usb disk, format of usb disk recommended to use FAT32,in particular, ExFAT format may produce a situation is not applicable.

Specification:
Interface:USB 2.0 UVC standard
TV System:PAL, NTSC
Recording Format:MPEG2

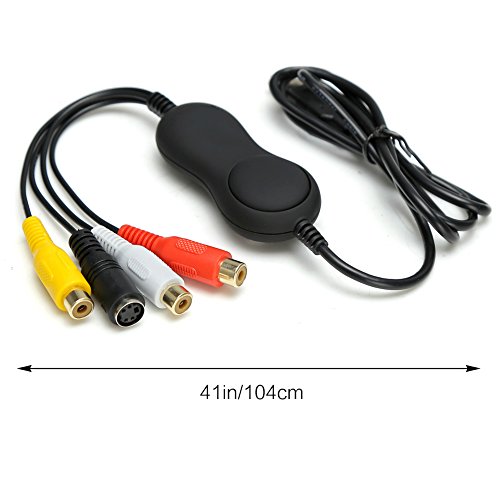

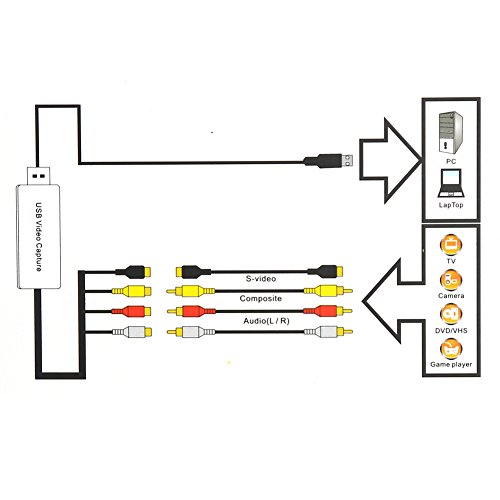

Input:Composite Video(RCA), S-Video(miniDIN 4pin), Audio L/R(RCA)
Resolution: NTSC 160×120 ～ 720×480, PAL 160×120 ～ 720×576
Rate:NTSC 30fps, PAL 25fps
Power Supply:USB Bus
Comsumed Power :≤ 1.5W
Support OS Window, Mac

Packages:
1 x Video Capture device
1 x Software CD
1 x English User Manual
　

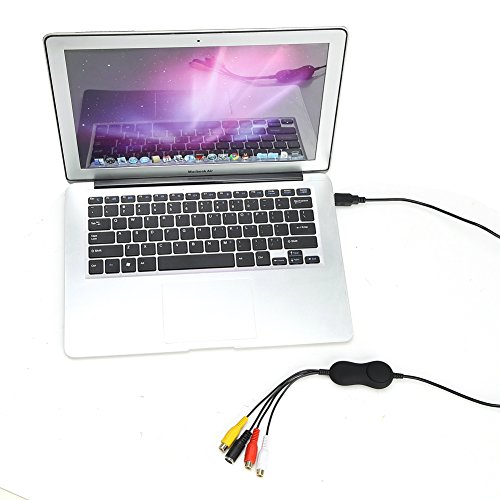

A smart advanced device for Desktop and notebook users transfers analog signal video to digital signal
Edit their own home video on PC. No matter what AV & S-video video device like V8, VHS, HI8, even old videotapes
System will install drivers for you automatically, no matter your Windows OS or Mac OS
Capture High-quality Video & Audio through popular USB 2.0 interface and not need external power (That means driver installed rightly when you see the “AV TO USB2.0”)

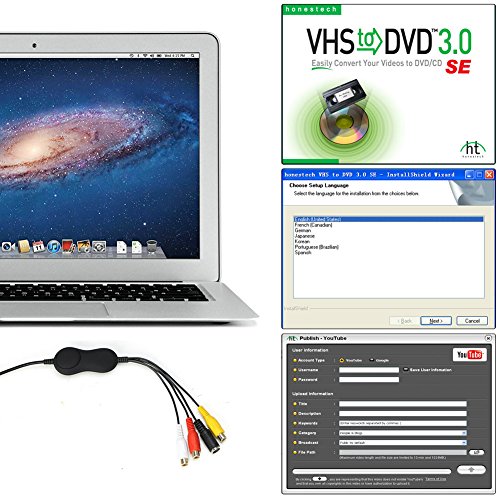

Include Professional and easy to learn & used video editor software
