UGREEN USB KVM Switch Box 2 Port VGA Video Sharing Adapter 2 in 1 Out Manual Switcher with USB Cables for Computer, PC, Laptop, Desktop, Monitor, Printer, Keyboard, Mouse Control

Multi-Tasking
Ugreen USB VGA KVM Switch allows you to share one USB keyboard, USB mouse, and VGA monitor to control 2 computers.
It is designed for multitask with two computers at your convenience, increasing productivity in the office or at home ; You can switch between 2 computers using a manual switch located on the top of the KVM unit.

Specification
1. One USB keyboard, USB mouse, and VGA monitor control two computers
2. Max resolution: 1920 x 1440;
3. No software drivers required;
4. No power adapter required;

How It Works

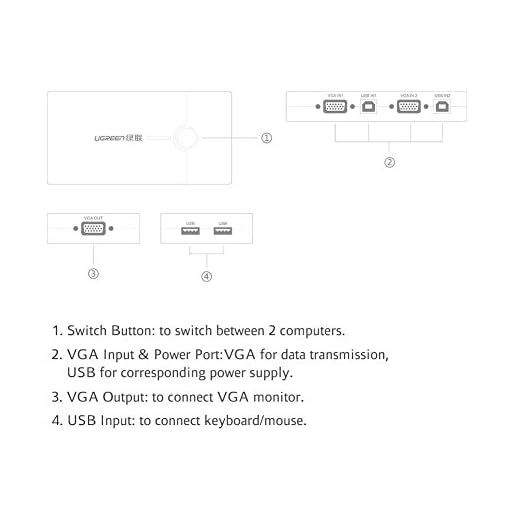

1. Connect the USB devices to the USB A female connectors on the switch;
2. Connect a VGA cable to the VGA OUT interface and the display device;
3. Connect VGA IN1 and USB IN1 to PC1 at the same time;
4. Connect VGA IN2 and USB IN2 to PC2 at the same time;
5. Press the manual switch button to switch between the two computers.

Operating Systems
* Windows 10 / 8/ 7/ XP/ Vista (32-bit / 64-bit)
* Mac OS X v10.3.9 or later
* Sun Solaris
* Linux

Important Note
Please make sure the VGA Input Connector 1 and USB B Connector 1 were plugged in the same Host. VGA IN1 and USB IN1 is corresponding. Do NOT support VGA IN1 and USB IN2 mixed insertion.

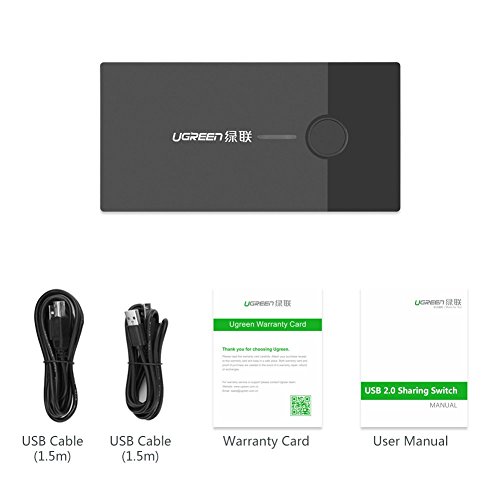

Package Contents
Ugreen 2-Port USB VGA KVM Switch x 1;
USB 2.0 Cable x 2

Ugreen 2 Port USB KVM switch box allows you to control 2 computers with only one set of controls (mouse and keyboard). It is great for workstations, test stands or anywhere multitask between computers is required. USB VGA KVM switch provides a cost-effective way to share one USB keyboard, USB mouse, and VGA monitor to control 2 computers.
Portable and Easy to Use: 2 USB Type A connectors, 2 USB Type B connectors, and 3 VGA connectors. The 2 In 1 Out KVM Switch between two computers is controlled by the push button on the top of the unit. 2 USB Type B connectors support not only for data transfer but also for the power supply. No external power required.
Higher Definition Output: Ugreen USB KVM switch supports high-definition image and supports maximum resolution up to 1920 x 1440. The adapter supports only for video output. But you can enjoy the audio through speakers from PC.
Wide Compatibility: Windows 10/8/7 / XP / Vista (32/64-bit), Mac, Linux, Sun Solaris, DOS, Win3, WINNT, Netware, and Unix. The VGA Switcher Box also supports online games and DVR. Plug and Play: no power supply, or software needed.
Important Note: Please make sure the VGA Input Connector 1 and USB B Connector 1 were plugged in the same Host. VGA IN1 and USB IN1 is corresponding. Do NOT support VGA IN1 and USB IN2 mixed insertion.
