UGREEN USB External Stereo Sound Card Audio Adapter with 3.5mm Aux and 2RCA Converter for Speaker, Headphone and Microphone, Earphone, Headset, Plug and Play on Windows, Mac, Linux and PS4, 3ft Cable

Ugreen USB Audio Adapter includes a stereo headphone output jack, left&right audio output and a mono microphone input jack. It can bypass the defective sound card or the faulty 3.5mm audio port of your laptop. Save the cost of replacing a failed sound card.
With this USB audio adapter, traditional headset can still be used on laptops.

More Connection Options for Audio Output

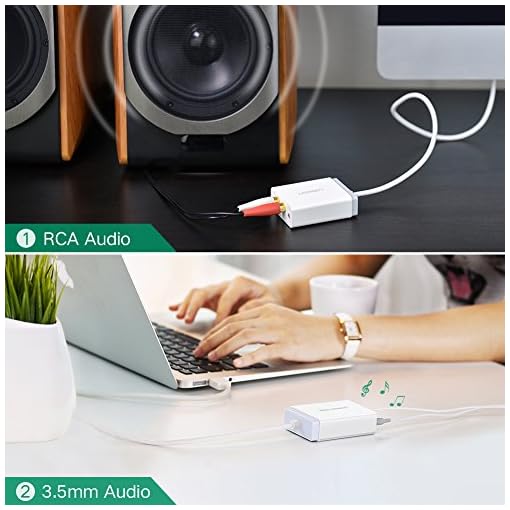

Compared with other adapters in market, it offers you 2 options for audio output, 3.5mm aux and 2RCA, which makes it compatible with more external speakers.

Specifications
Input: USB 2.0 A Male, 3.5mm mono microphone jack
Output: 3.5mm stereo jack, L/R RCA audio
Support sampling rate 44.1K/48K/96KHz and bitrate 16/24 bits
Frequency Response: 20Hz-20kHz, Output Power: 30mW, SNR: 92dB

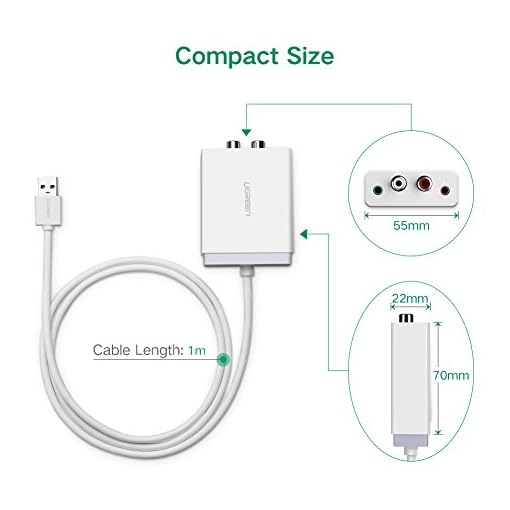

Dimension: 70x55x22mm with 3ft cable.

System Support

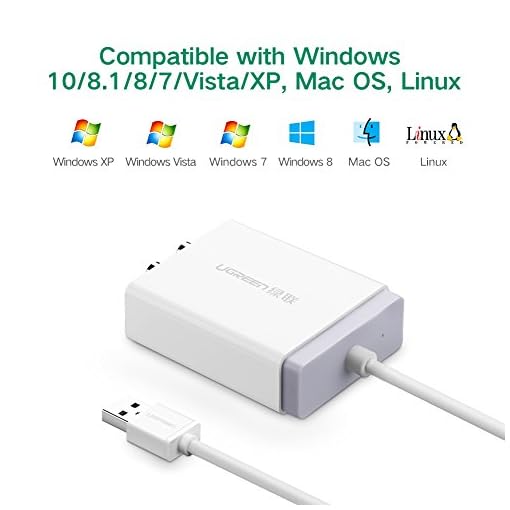

Windows 10/8.1/8/7/Vista/XP
Mac OS 8.6 or above
PS4- Important Note: For using with PS4, the output sound for Left and Right chanel will be Reversed as the sound sampling rate of our audio adapter(96K/24BIT) is higher than PS4 Compatibility(48K/16BIT).

Configuration Instruction
Windows:
Right-click on the sound icon in the taskbar;
Select Playback or Recording devices;
Adjust the volume on the computer and in the application.

Mac:
Go to System Preferences > Sound >C-Media USB Headset >Output or Input >Volume

Important Notes
1. We don’t recommend to use the 3.5mm port and RCA port on the adapter simultaneously, because one of the output device’s volume may decrease.
2. Pls kindly note this adapter supports Stereo Sound, NOT surround sound.
3. To ensure proper hardware detection, plug the external headset into the adapter first, then connect the adapter to PC.

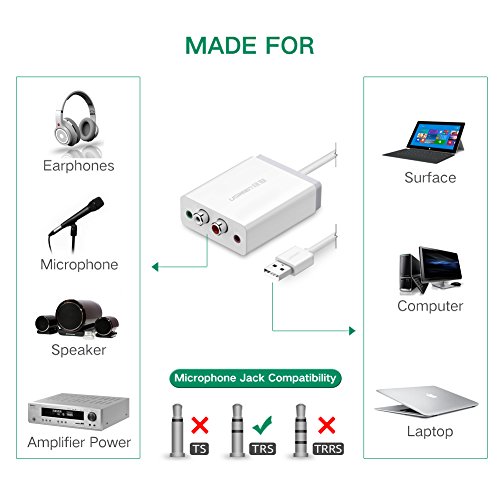

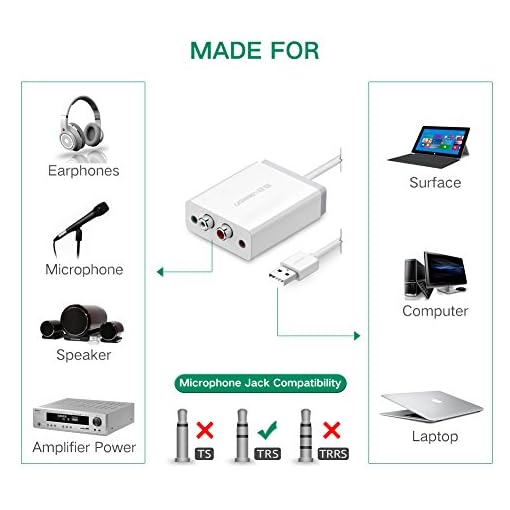

4. Mono Microphone requires TRS connector (not TS or TRRS).

Package Content
Ugreen USB Stereo Audio Adapter x 1
Important Note: 1. We don’t recommend to use the 3.5mm port and RCA port on this adapter simultaneously, because one of the output device’s volume may decrease. 2. Pls kindly note this adapter supports Stereo Sound, NOT surround sound. 3. It do NOT support PS3.

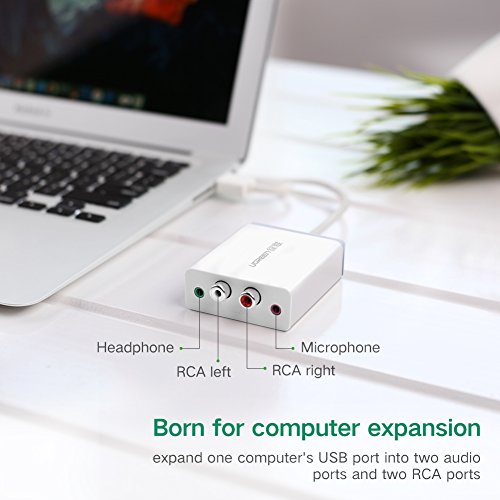

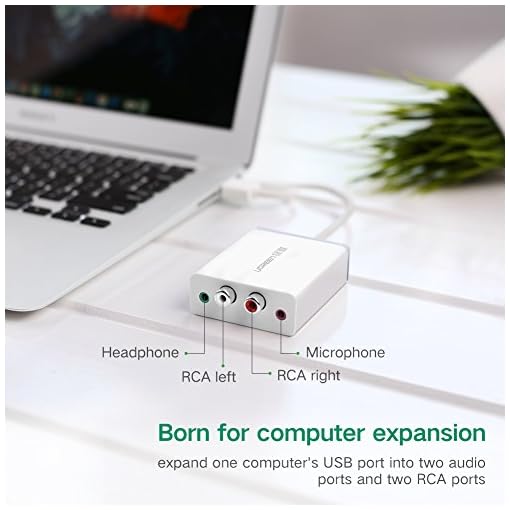

This USB external sound card adds a microphone-in, a 3.5mm audio-out and 2RCA left and right audio-out ports to your computer through a USB port, which enables you to connect your existing headphones, headset, speakers, or microphone with 3.5mm jack to your PC through a USB interface. Compared with other USB sound adapters in market, it offers you 2 options for audio output, 3.5mm aux and 2RCA, which makes it compatible with more external speakers.

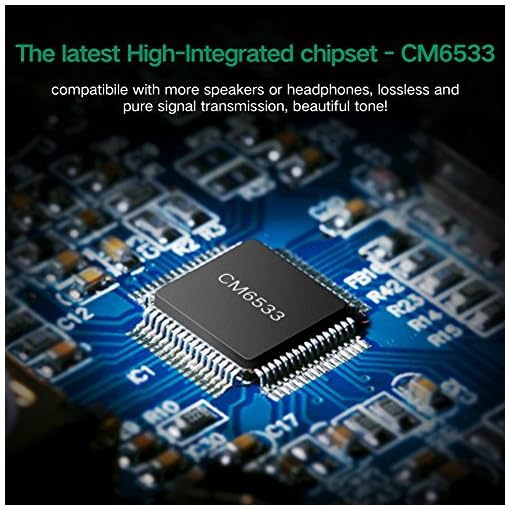

Additional USB stereo audio adapter: It is perfect to bypass a faulty sound card, audio port, or as a replacement for a broken USB audio adapter. Superb Sound Quality: USB External Stereo Sound Adapter adopted Advanced C-Media IC technology for optimal sound quality and device performance. It is constructed of durable ABS housing and with ultra compact design.
Easy to set up: no driver required, just plug and play! USB bus-powered, no external power required. The attached 1m/3ft cable reduces stress on the USB port and won’t block the adjacent ports on your computer.
Note: This sound adapter can NOT be used to connect TV directly. Compatible with PS4 and any standard USB Audio Class enabled system including Windows 10/8.1/8/7/Vista/XP, Mac OS X, Linux and Google Chromebook, Windows Surface 3 pro, Raspberry Pi etc.
