UGREEN PCI Express Card with 2 USB 3.1 Type-C Ports, Supports 10Gbps Max for Desktop PC

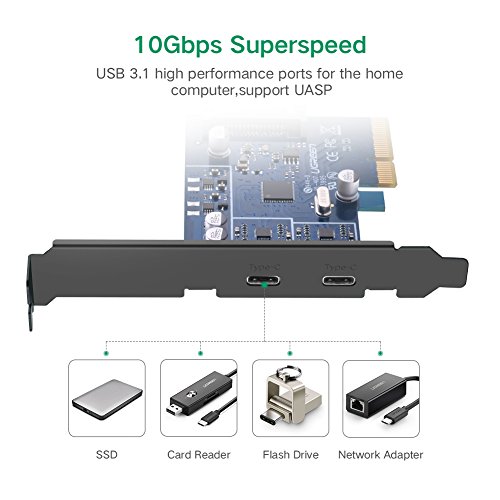

Work faster, with USB 3.1 performance
By adding 2 of 10Gbps USB ports to your computer, you can harness the speed of USB 3.1 Gen 2. You can access peripherals at twice the speed of traditional USB 3.0 devices.

Wide Applications
1.Deploy at home or in the office, and connect the latest USB-C devices, such as HDD enclosures
2.Install the card as a vital hardware component when building a PC
3.Upgrade an older PCIe based desktop from USB 3.0 or 2.0 to USB 3.1 Gen 2 (10Gbps)
4.Ideal for backing up files, video editing, and data recovery using high-bandwidth USB 3.1 Gen 2 external storage solutions

Operating Systems
Windows 10/8.1/8/7/XP, Vista(with included drivers)
– No additional drivers are needed for Win 10

Notes:
1.Power Supply:
(1). Only support 5v power supply. Do NOT connect 12V power source.
(2).★ Do NOT insert the sata power supply cable into our PCI-E card in the reverse direction, otherwise the voltage may change from 5V to 12V and result in short circuit or smoking.

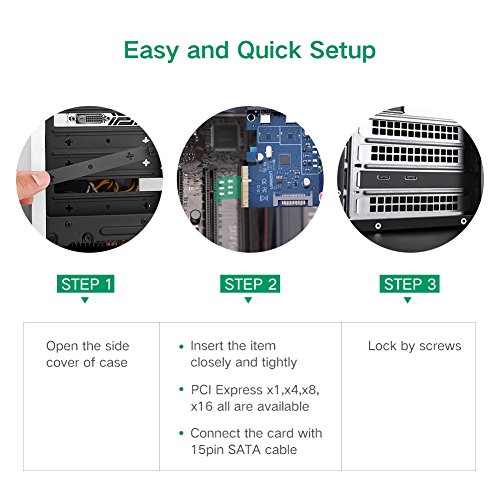

2.★Shut down your computer before installing. Please do NOT install this PCI-E card when the computer is on.
3.★Do NOT charge the PCI-E card by the 2 Type-C ports, which are mainly used for data transmission.

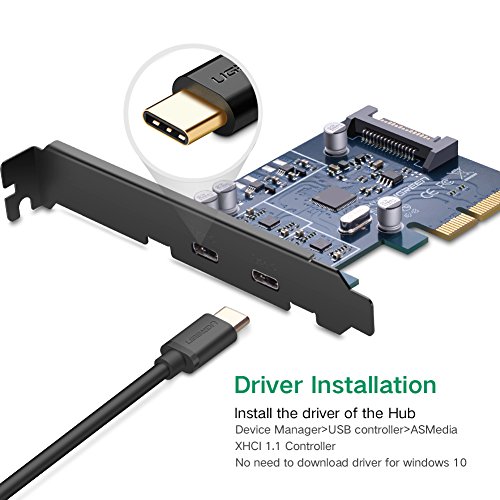

4.Please kindly download driver before using.Device Manager-USB controller-ASMedia XHCI 1.1 Controller
5.This is PCI-E card, NOT PCI card.
Support UASP after driver installed:
20% Faster than traditional USB 3.0, with UASP Transfer Protocol; The UASP Transfer Protocol only can accelerate read and write speed of SSD hard disk.

Package Includes

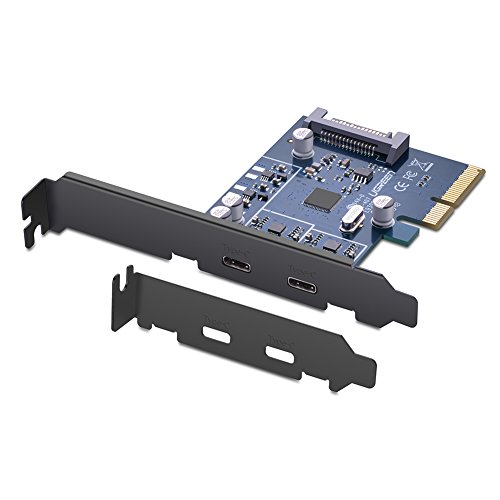

1 x PCI Express Card with 2 USB 3.1 Type-C Ports with 12cm Bracket
1 x CD Driver
1 x 8cm Low-profile Bracket

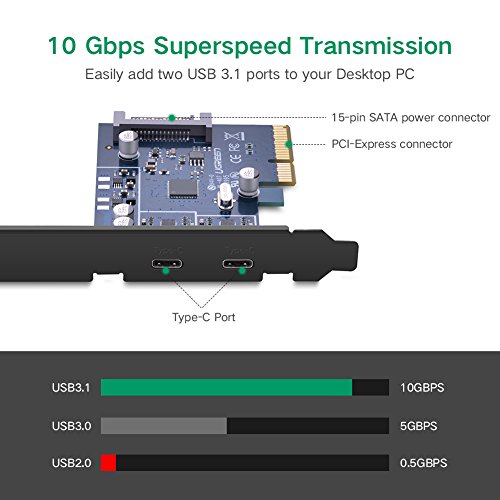

Add two USB 3.1 Type-C (USB-C) downstream connectors for standard desktop PCs. 2 reversible Type-C ports easily connect to 2 Type-C enabled devices simultaneously, no matter which side you plug in.
This USB 3.1 card adds two USB-C ports to your desktop, with a combined bandwidth up to 10Gbps,Backwards compatible with USB 3.0 and 2.0 devices; Fits any PCI Express x1, x2, x4, x8 or x16 socket; Additional 8cm Low-profile bracket provides the option for installation in small size HTPC case.
Operating System Compatibility: Windows 10/8/8.1/7/Vista/XP 32/64-bit, Server 2003-2008 32/64-bit.(No need to download driver for windows 10).

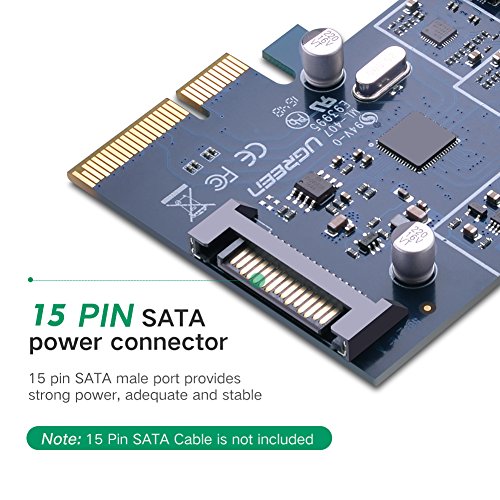

Supports UASP (USB Attached SCSI Protocol) and increases data transfer speed with external storage devices especially for SSDs. Built-in 15 pin SATA power connector to power USB devices
Notes: 1.Power Supply: (1). Only support 5v power supply. Do NOT connect 12V power source. (2). ★Do NOT insert the sata power supply cable into our PCI-E card in the reverse direction, otherwise the voltage may change from 5V to 12V and result in short circuit or smoking. 2.★Do NOT install this PCI-E card when the computer is on. 3.★Do NOT charge the PCI-E card by the 2 Type-C ports, which are mainly used for data transmission. 4.This is PCI-E card, NOT PCI card.
