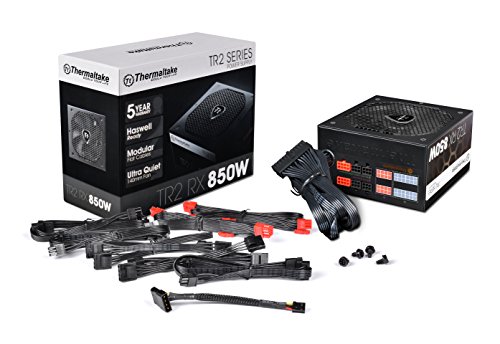

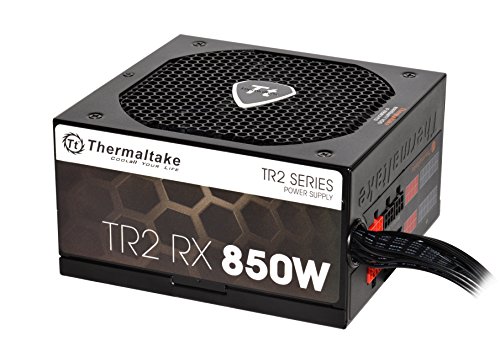

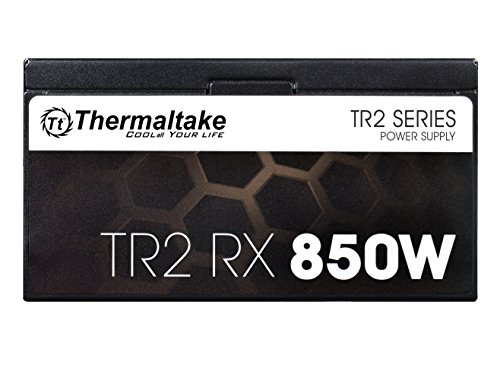

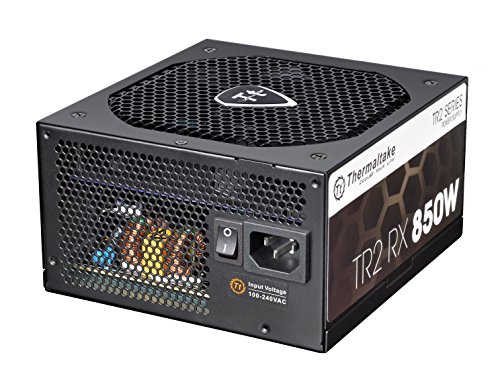

Thermaltake TR2 RX 850 Watt ATX Active PFC Haswell Ready Power Supply

TR2 RX 850W SLI/CrossFire Ready Continuous Power ATX12V v2.31 / EPS 12V 80 PLUS Certified 5 Year Warranty Active PFC Power Supply Haswell Ready

Power up your next build with the Thermaltake TR2 RX 850W Power Supply. Offering 80 PLUS Certification, industrial grade safety protections, all flat all black modular cables and much more. Designed with solid state capacitors for extended lifespan and backed by a 5 year warranty, provide clean reliable power to your system components for your system today and tomorrow.

Specifications:

• Type: Intel ATX 12V 2.31 & EPS 12V 2.92
• PFC: Active PFC
• +12V Rail: Single
• Haswell Support: Yes
• Modular: Semi Modular
• Energy-Efficient: 80 PLUS Certified (85% Efficiency)
• Input Voltage: 100 – 240V
• Input Frequency Range: 47Hz – 63Hz
• Input Current: 10A
• Output: +3.3V@22A, +5V@22A, +12V@62A, [email protected], [email protected]
• MTBF: 100,000 Hours
• Approvals: UL/CuL/RoHS/CE/FCC
• Fan: 140mm Intelligent Cooling Fan
• Dimensions: 160mm(L) x 150mm(W) x 86mm(H) | 6.2”(L) x 6”(W) x 3.4”(H)

Connectors:

• 1x 24pin ATX
• 1x 4+4pin EPS
• 4x 6+2 PCI-E
• 5x SATA
• 6x Peripheral
• 1x Floppy

Support:

Please visit our website or search “Thermaltake Support” for any assistance.

850W Power supply and compliance with Intel ATX 12V 2.31 & EPS 12V 2.92 standards.
Protections: Over Voltage, Under Voltage, Over Power and Short-Circuit. Single +12V rail. Design: Delivery up to 62A on single dedicated 12V rail

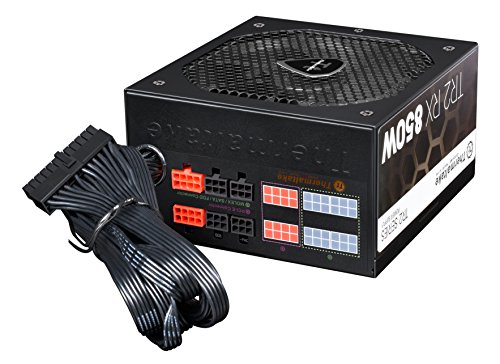

Modular Cables: Semi-modular all flat all black cable provide low-profile solution for easy cable management
Ultra Quiet Fan: 140mm intelligent temperature controlled fan.
Solid State Capacitors: Provide great stability at higher operating temperatures, frequencies and currents
Circuitry Design: Synchronous rectification with DC-DC converter for extreme performance and high efficiency
NVIDIA SLI Ready / ATI Crossfire Ready.
Warranty: 5 Years
Note: This power supply is an ATX semi-modular power supply which means it has 24 pin motherboard cable and 4+4 pin COY cable connect to the power supply
