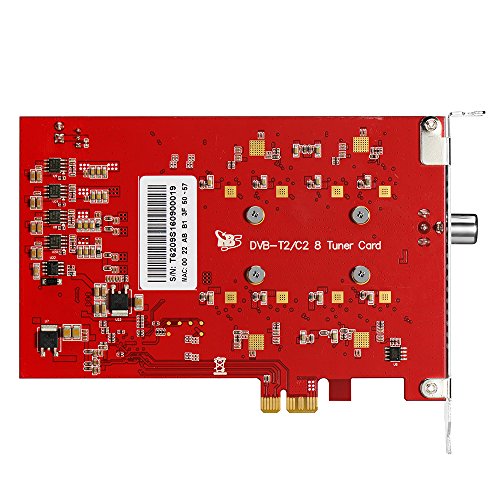

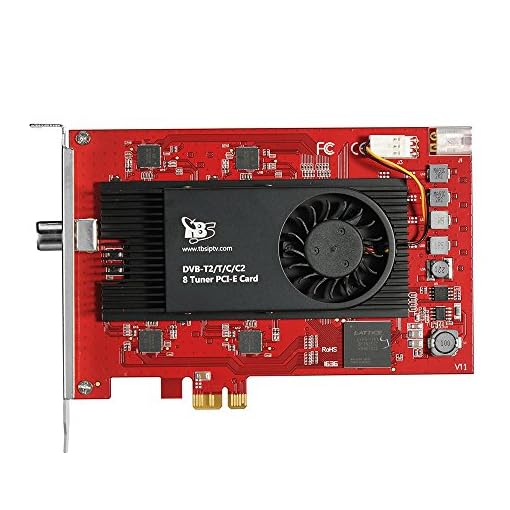

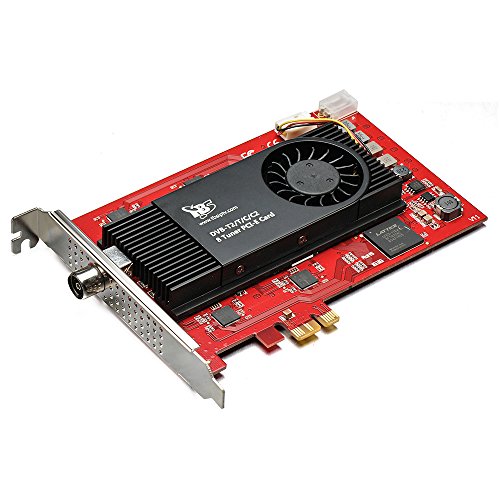

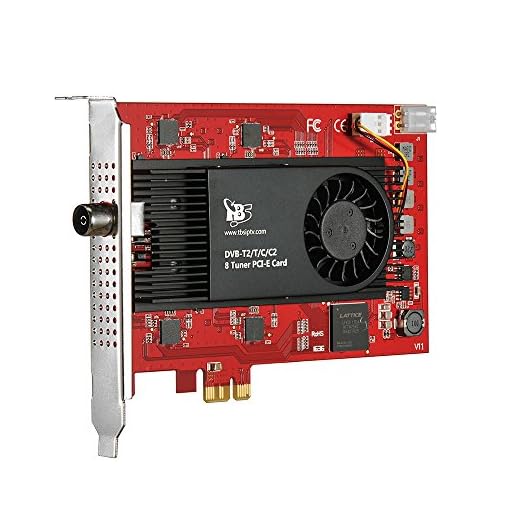

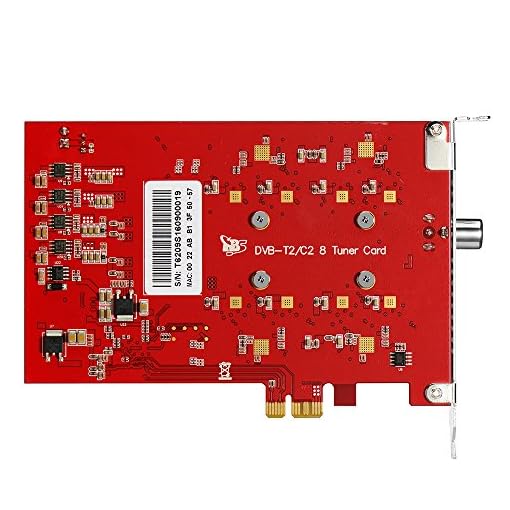

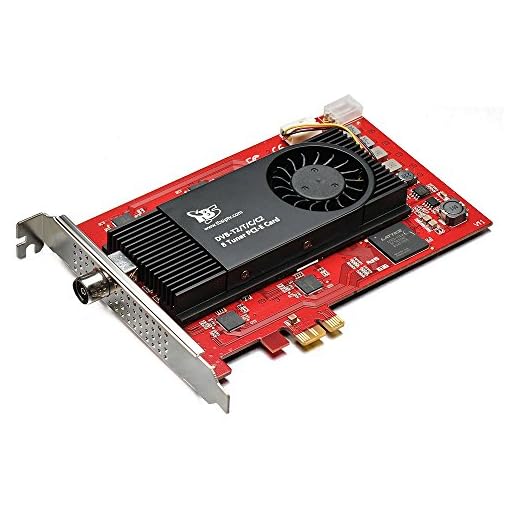

TBS 6209 DVB-T2/ C2/ T/C/ ISDB-T Octa PCIe Digital TV Tuner Card for PC/IPTV Server

DVB-T2 and T2-Lite:
Receiving channel: VHF band, UHF band
Bandwidth: 1.7, 5, 6, 7, 8MHz
FEC:QPSK, 16QAM, 64QAM,256QAM
FFT mode: 1K, 2K, 4K, 8K, 16K, 32K
Code rate: 1/2, 2/3, 3/4, 5/6, 7/8

DVB-C2:
COFDM demodulator(16_QAM to 4096_QAM)
FEC(LDPC/BCH) decoder
Bandwidth: 6MHz, 7MHz, 8MHz

DVB-C:
QAM demodulator
FEC decoder
1 to 7.2MSymbol/s

ISDB-T:
COFDM demodulator and FEC decoding
Support 3 layers decoding
TMCC decoding
Support differential demodulation
AC1 and AC2 decoding

Power consumption:
Input/ Power: 12V/14W
Temperature: 0~60℃
System Requirements:
Windows XP / Vista/ 7/8/10, Linux
Available PCI Express x1, x4, x8 or x16 slot
Digital TV signal (DVB-T2/C2 /T/C/)

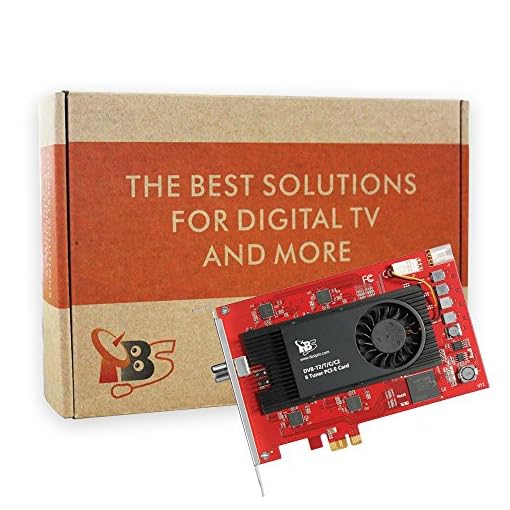

Package Contents:
1 x TBS6209
1x DC line
1x F Connector
DVB-T2/T/C2/C/ISDB-T TV RECEIVING: With PCI-Express interface to receive DVB-T2/T/C2/C/ISDB-T standard signal at the same time
OCTA TUNER: Used for watching eight different channels from eight different frequencies simultaneously. It supports both DVB-T2 and DVB-C2 standard at the same time.
RECORDING: Also works as a digital video recorder for recording digital terrestrial TV programs with full HDTV support
IPTV STREAMING: Considered as a professional TV tuner for industrial-level users. When you have limited PCIe slots in your server, it enables you to receive more channels than the usual dual or quad TV tuner, thus it is highly recommended for IPTV streaming and broadcasting system.
DRIVER: Windows BDA driver and Linux Driver ready
