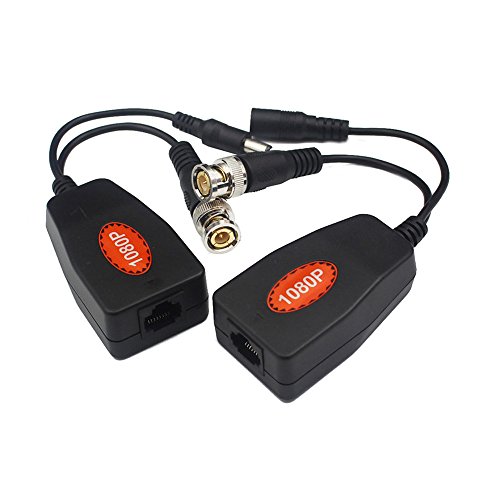

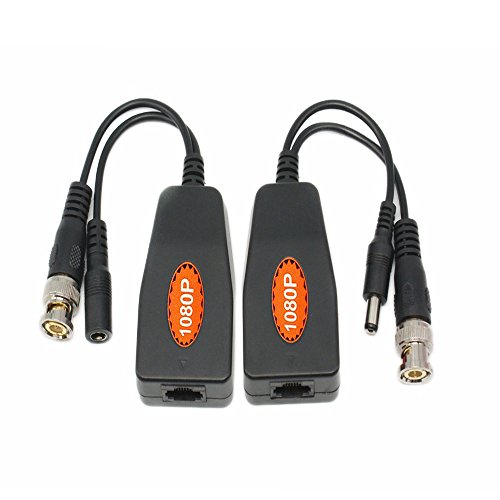

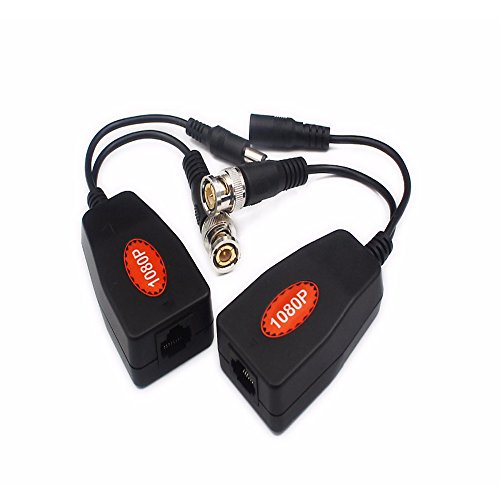

Surge Protected Passive Video Power Balun Hd 1080P Ahd Tvi Cvi Analog Security Surveillance Camera Utp Adapter Bnc to rj45 Cat5 Cat6 Data Cable (1 Pair)

Passive Video Balun with Power that along with transmitting CCTV video over CAT5 CAT6 network cabling, also allows for the injection of power to your security camera over your network cable. You’ll expect to transmit video up to 1000ft like any passive video balun. Power transmission will vary based on the following factors:

1.Gauge of the cable (CAT5 or CAT6)

2.Quality of the cable meaning whether the cable is good quality full copper or a cheap one that may be copper clad aluminum (CCA) or copper clad silver (CCS)

3.Voltage and amperage of the original power source

4.where resistance in the wire will resolve the voltage/amperage at the camera after it has traveled the length of the wire

technical specifications:

Compatible with HD-AHD, HD-TVI and HD-CVI Cameras

Up to 300 Meters / 1000 Feet for AHD 960P / 1080P Cameras

Up to 300 Meters / 1000 Feet for HD-CVI 720P Cameras

Up to 600 Meters / 2000 Feet for HD-TVI 720P Cameras (600M NEED DVR SUPPORT)

NTSC / PAL Video Format Support

POWER:DC 12V IN – DC 12V OUT TRANSMISSION 300M

BANDWIDTH:0-50MHz

coaxial cable connector:2kv (common-mode)per:IEC 61000-4-5

UTP cable connector:2kv (different-mode/common-mode)per:IEC 61000-4-5

Impedance:BNC MALE 75 ohms

Impedance:UTP Cable 100 ohms

wiring instruction:

RJ45 WIRING METHO:T568B

1.video+

2.video-

3.data+

4.power+

5.power+

6.data-

7.power-

8.power-

note: this isn’t an active balun, not a signal booster amplifier, it need a dc 12v power source to use ( sold seperately)

Cost-effective solution:cat5/cat5e/cat6 cable is way less money than coaxial cable ,use with yjs-1701hd-vp, you only wish to run one cat5e/cat6 cable as a substitute of two coaxil cable and power cable, save your material and labour cost
Reinforce all NTSC/PAL format video devices such as cameras monitors DVR recorders and Compatible with HD-AHD HD-TVI HD-CVI and CVBS Cameras
made with top of the range materials: engineering ABS plastic shell wrapped to give protection to electronics , BNC build with solid alluminum alloy and pure gold plate copper pin for best video trancievers
long distance transmission capacity up to 600m wih 720p and 300m with 1080p
built-in surge suppression to give protection to video equipment against damaging
