SUNYDEAL TV Wall Mount Bracket For 32 39 40 42 43 45 46 47 48 49 50 55 60 65 inch LCD LED Smart TVs – Full Motion Articulating Arm Swivel Tilt – Holds 120 lbs, Extend 19 inch, VESA Up 600x400mm

Specification
1) Fits most TV Screen 30″~70″ (Please check VESA and Weight first)
2) Tilt: +/- 15 degree up and down and any angle in between
3) Swivel: 180 degree horizontal rotation with protected Dual Arm
4) With Dual Arm, Strong and Safe
5) Load Capacity: 45kg/99lbs
6) Iron thickness: 2.0mm
7) Iron pipe thickness: 1.2mm

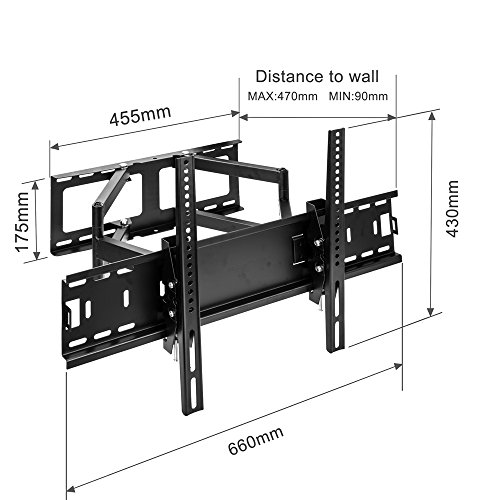

8) Wall Plate Size: 17.7 x 7.1 inch
9) Fits VESA Mounting Hole Patterns From 100mm x 100mm(4″x4″) to 600mm x 400mm (24″x16″)
10) Distance from the TV to the wall: Max 18 inch

Notification:
1) Please check the weight of your TV, it will have to be less than 99 lbs/45kg.
2) Look in the back of your TV, find the mounting hole and measure horizontal and vertical distance, if the horizontal distance(width) is within 24″(600mm), vertical distance(height) is within 16″(400mm), then the bracket will work perfect for you.
3) Make sure the wall that installed the TV bracket is firmness and tightness, like concrete wall, solid wood wall, do not install in hollow and floppy walls.
4) Please check the screw size before purchase (image “PARTS”), if the screws do not fit you might want to order from your local store.
5) This wall mount is compatible with 2×4 stud wall (16 inch Spacing).
6) Come with Retail Package Box and the User Manual.

Compatible list:
This Universal Mount is compatible with the following displays in addition to other brands will not be listed (please check VESA and weight):
Samsung / LG / Vizio / Sanyo / Sharp / Sony / Emerson / Panasonic / Toshiba / Philips /
Insignia / Westinghouse / Element / Coby / JVC / AOC / Dynex / TCL Roku and more
☺ UNIVERSAL DESIGN: Full-motion wall mount for 30″ – 70″ flat-panel TVs up to 120lbs, VESA(mounting hole pattern) – compatible faceplate fits VESA 200X100mm (8″x4″) 200X200mm(8″x8″) 300X200mm (12″x8″) 300X300mm (12″x12″) 400X300mm (16″x12″) 400X400mm (16″x16″) 500X400mm (20″x16″)600X400mm (24″x16″) One-piece long wall plate: Fits for solid concrete wall/ wood stud spacing of 16”, 18′ .

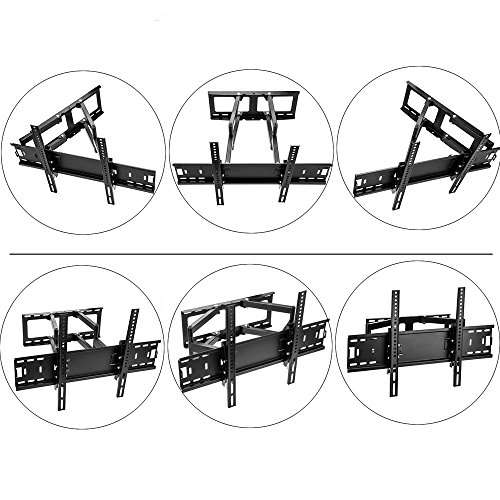

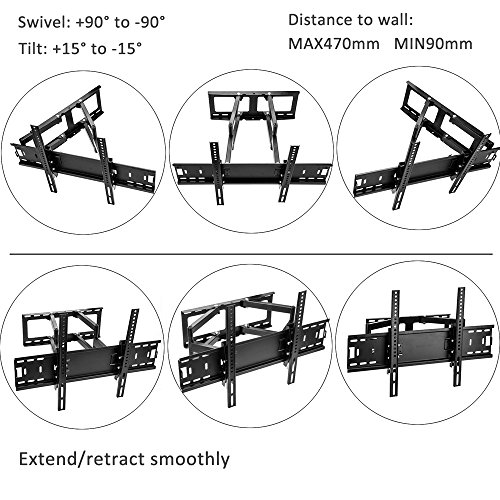

☺ ADJUSTABLE OPTIMAL VIEWING: +15°/-15° Tilt, +/-90°Swivel (Maximum swivel angle depends on TV size) and +/-3°rotation for maximum viewing flexibility. Choose the very best angle to view the screen from anywhere in the room. Post-installation level adjustment allows the TV to level perfectly.
☺ SAFE TO USE: Rest assured that your TV is in protected hands. This heavy-gauge TV mount has high standards, holding 30″ – 70″ TVs weighing up to 120lbs, which are tested to hold 4 times the weight they are rated to based on UL standard.
☺ SAVE SPACE: Dual Articulating arms that retract 3.5″ from the wall in home position to save space and also extend to a maximum 19″ from the wall. Subsequently saving you some valuable space and adding a nice, neat appearance to your household.

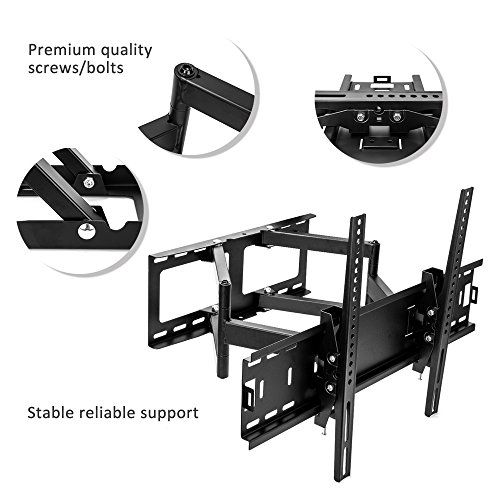

☺ Heavy Duty Steel Construction & Two Arm Design Provides 120 lbs Max Loading Capacity. Fits Vizio Samsung Sharp Aquos Sony LG Panasonic TCL Emerson Sceptre Insignia Toshiba Westinghouse Element Dynex 14 17 19 22 24 27 28 29 32 39 40 42 43 45 46 47 48 49 50 55 60 65 inch Plasma Flat Panel Screens Display LCD LED HDTV 4K 3D Curved Frame Smart TV PC Monitor
