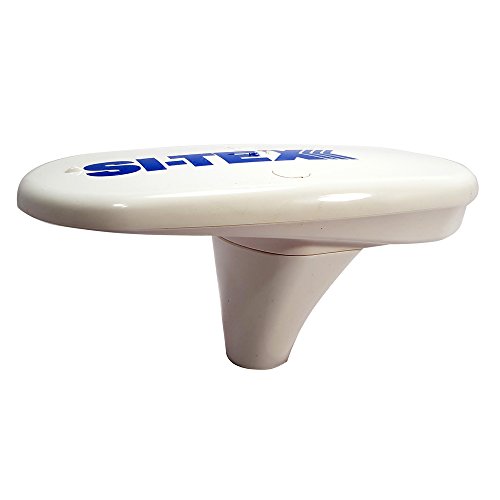

Si-Tex Vector Compact-S Sat. Compass GPS w/NMEA-0183 Cable

Vector Compact – S Worlds Smallest GPS Compass with NMEA 0183
Interconnect Cable

The Vector Compact GPS Compass offers superior navigation including accurate positioning and heading performance. V104 uses SBAS (WAAS, EGNOS, MSAS, and so on.) for differential GPS position allowing Hemisphere GNSS to supply a low cost and highly effective positioning and heading based totally smart antenna.

The rugged and low-profile enclosure combines Hemisphere GNSS’ Crescent Vector technology and two multi-path resistant antennas for accuracy, portability and simple installation. The smart antenna, measuring in lower than a half meter in length, mounts easily to a flat surface or pole. The stableness and maintenace-free design of Vector Compact provides traditional GPS position and heading at a low cost, replacing the combo of
low-accuracy GPS and fluxgate compass.

GPS Receiver Specifications:
Receiver Type: Vector GPS L1
Compass Signals Received: GPS
Channels: 24
GPS Sensitivity: -142 dBm
SBAS Tracking: 2-channel, parallel tracking
Update Rate: 10Hz same old (position and heading)
Rate of Turn: 90x/s maximum
Compass Protected Distance: 30 cm (11.8 in)
Cold Get started: Warm Get started: Hot Get started: Heading Fix: Maximum Speed: 1,850 kph (999 kts)
Maximum Altitude: 18.288 m (60,000 ft)

Power
Input Voltage: 8-36 VDC Power Consumption
Power Consumption: ~2.0 W nom.
Current Consumption: 0.16 A @ 12VDC
Power Isolation: Isolated to enclosure
Reverse Polarity Protection: Yes

Mechanical
Dimensions Now not including mount: 29.9 L x 12.9 W x 4.5 H (cm)
10.2 L x 5.1 W x 1.8 H (in)
Dimensions Including mount: 25.9 L x 12.9 W x12.8 (cm)
10.2 L x 5.1
