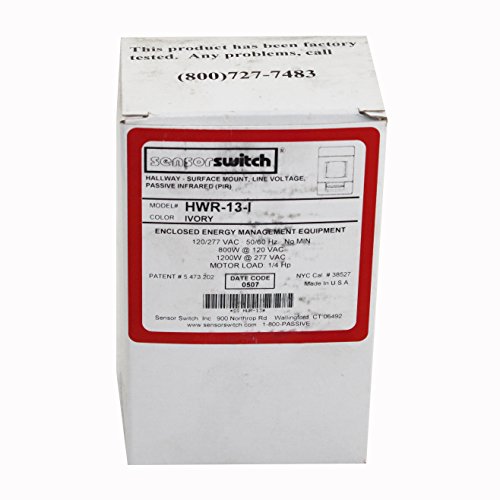

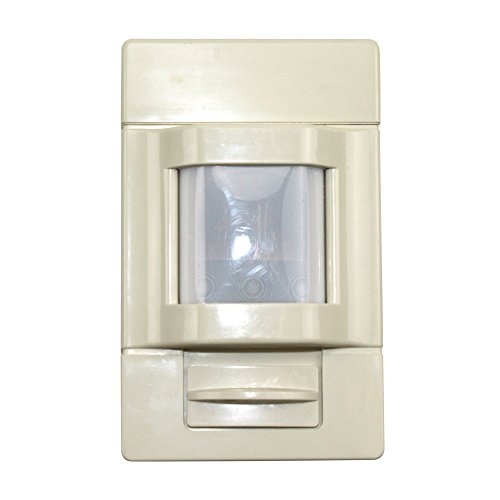

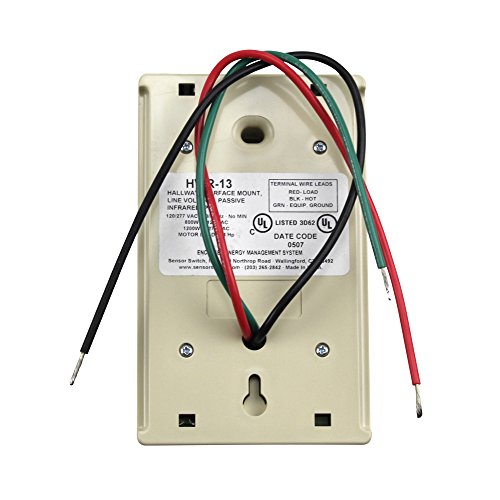

Sensor Switch Hwr-13 Ivory Hallway Occupancy Sensor Wall Mount Line Voltage Passive Infrared Pir 130 Ft

Long narrow PIR detection for keep an eye on of hallway lighting is provided by the HWR13 Series sensor. Really helpful to be applied in pairs (requires parallel wiring) and mounted at either end of a long corridor, the HWR13 detects occupants entering the hallway as much as 130 ft (39.62 m) away (when mounted at 10 ft (3.05 m)). Initial detection at these distances is for entrances at right angles to the beam pattern. The HWR13may also be used with other line voltage sensors to adequately view a space. For instance, a CMR 10 ceiling sensor could also be in a vestibule at one end even as the HWR13 is on the other. The sensor detects changes within the infrared energy given off by occupants as they move throughout the field-of-view. When occupancy is detected, a self-contained relay switches the connected lighting load on. The sensor is line powered, switches line voltage, and requires no field calibration or sensitivity adjustments.
Hallway Sensor Wall Mount Coverage as much as 130 ft (39.62 m) when mounted at 10 ft (3.05 m)
one hundred% Digital PIR Detection,
Push-Button Programmable, Adjustable Time Delays
Convenient Test Mode, No Field Calibration or Sensitivity
