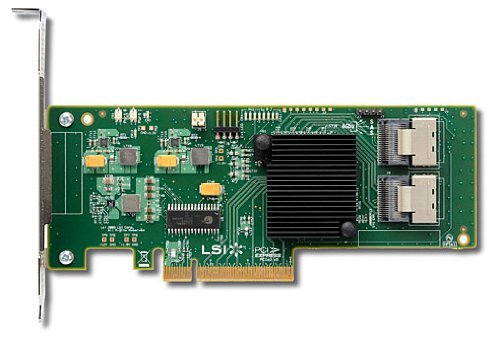

Sas9211-8i 8port Int Single 6gb Sata+SAS Pcie 2.0

Specifications

• Mfr Part Number: LSI00194 (9211-8I SINGLE)
• Features:
• 6Gb/s data transfer rate per port
• Two x4 internal SFF8087 Mini-SAS connectors
• x8 5GT/s PCI Express 2.0 host interface
• MD2 low-profile form-factor design
• Integrated RAID 0, 1, 1E, and 10
• Maximum power usage of 9W
• Connects to SAS and SATA HDDs, SSDs, and tape drives
• Support for upto 256 physical devices
• Fusion-MPT architecture can achieve more than 290,000 I/Os per second
• PowerPC 440 @533MHz
• Consistency Check
• Hot Spare Support
• SMART error detection
• Supports all major operating systems
• RoHS compliant
• SAS Bandwidths:
• Half Duplex: Single Lane – 600MB/s; Wide Port (2 Lanes) – 1200MB/s; Wide Port (3 Lanes) – 1800MB/s; Wide Port (4 Lanes) – 2400MB/s; Wide Port (2x 4) – 4800MB/s
• Full Duplex: Single Lane – 1200MB/s; Wide port (2 lanes)- 2400MB/s; Wide Port (4 Lanes) – 4800MB/s
• Bracket: Full Height and Low Profile
• PCI Certification: PCI-Express 2.0 x8
• SAS Bus: 2×4 6Gb/s SAS & SATA Ports
• SAS Controller ASIC: LSISAS2008
• Internal Connectors: 2x x4 Internal Mini-SAS SFF8088
• Integrated RAID Levels: Integrated RAID 0, 1, 1E and 10
• Max. Number of SATA and SAS Physical Devices: 256
• PCI Voltage: +12V 10%
• PCI Power: 13.5 Watts
• MTFB: >2,000,000 Hours
• Support OS: Microsoft Windows, Linux (SuSE, Red Hat), Solaris, VMware
• PCI Form Factor: MD2 Low-Profile, 6.6 x 2.536 inch
