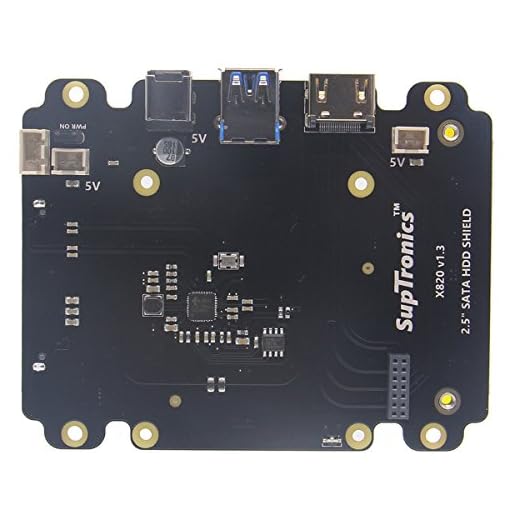

Geekworm Raspberry Pi 3 B+/3B SATA HDD/SSD Storage Expansion Board, X820 V3.0 USB 3.0 Mobile Hard Disk Module for 2.5 Inch SATA HDD/SSD/Raspberry Pi 3 Model B+ (B Plus)/3 B/ROCK64/Tinker Board

Notice:
The Raspberry Pi 3 Board & 2.5inch SATA interface HDD/SDD is not included.

[Overview] – This X820 expansion board provides a complete storage solution for raspberry pi, only 2.5 inch SATA interface HDD/SDD hard disk is suitable for X820 Board;
– For Use With: Raspberry Pi 3 Model B/ 2B / B+
– Upgraded to USB3.1 Gen1 port; (SupportS USB 3.0) w/ high quality USB 3.0 Cable ( Lenght- 80cm/2.62inch; Diameter- 5.96mm/0.19inch)
– Operating System: All Raspberry Pi operating systems

[Features] – Supports upto 4TB 2.5-inch SATA hard disk drives (HDD) / solid-state drive (SSD)
– Ideal storage solution for Raspberry Pi
– USB 3.1 Gen1 to SATA 6Gb/s Bridge Controller
– USB 2.0 connectivity offers plug-and-play functionality on your Raspberry Pi
– Quick file transfer with high-speed USB 3.0 connectivity from a PC or a Mac
– External Self Powered – Do not require power from Raspberry Pi USB port
– Powers the Raspberry Pi – no additional power supply for RPi
– Duplicated Raspberry Pi HDMI port

[Specification] – Power supply: AC 100 – 240V input 50 / 60Hz, 5V DC 4A output
– DC Power Plug Size : 5.5*2.5mm
– Output Ports: 1 x HDMI, 1 x USB , 1 x DC jack
Notice:
1/ DO NOT APPLY POWER TO YOUR RASPBERRY PI VIA THE PI’s MICRO USB SOCKET!
2/ The Max. voltage is 5V, if over 5V, the X820 board may be damaged.
3/ Please use X820 board with a good quality power supply(for X820 with Power Kit, search with ASIN: B073QLHLMT). The power adapter powers not only the Raspberry Pi , but also the SSD/HDD. If the power is low, the SSD/HDD may not be identified.

[Packing List] 1 x X820 Expansion Board
1 x USB 3.0 cable (Length: 80cm/ 2.62 inch)
1 x USB connector
1 x 2 Pin Power Connection Wire(Cable: 10cm)
1 x HDMI Adapter
1 x Install Screws pack
[Installation Guide & more details] Please refer to the WIKI: http://www.raspberrypiwiki.com/index.php/X820
The Raspberry Pi X820(Updated Version of X800) Expansion Board seamlessly connects any 2.5″ external SATA HDD/SSD drive with a Raspberry Pi Compute Module. With the Rasberry Pi X820 Board, you’re able to easily expand your storage.
This board support upto 4TB 2.5-inch SATA hard disk drives (HDD) / solid-state drive (SSD))!
Upgraded to USB3.1 Gen1 port(Supports USB 3.0) w/ high quality cable ( Lenght- 80cm/2.62inch; Diameter- 5.96mm/0.19inch);
Quick file transfer with high-speed USB 3.0 connectivity from a PC or a Mac; It is perfectly compatible with Raspberry pi 3 Model B, 2B, B+.
For Installation & more details, please refer to our WIKI: http://www.raspberrypiwiki.com/index.php/X820
