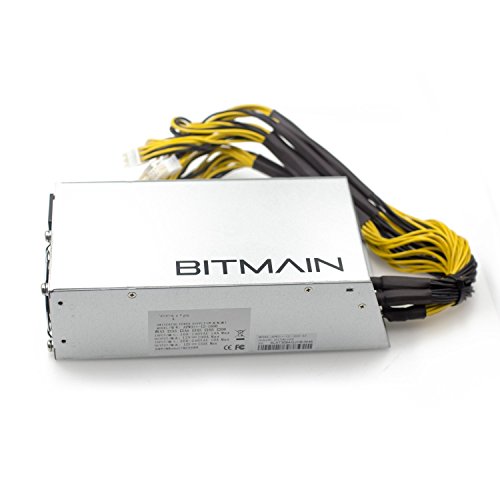

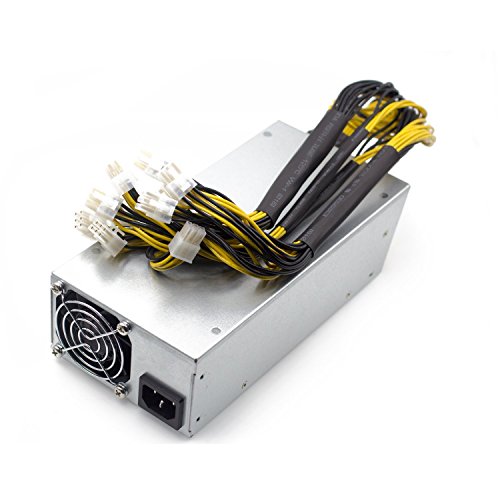

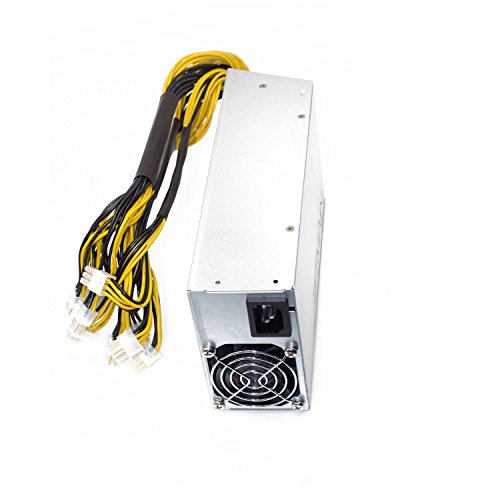

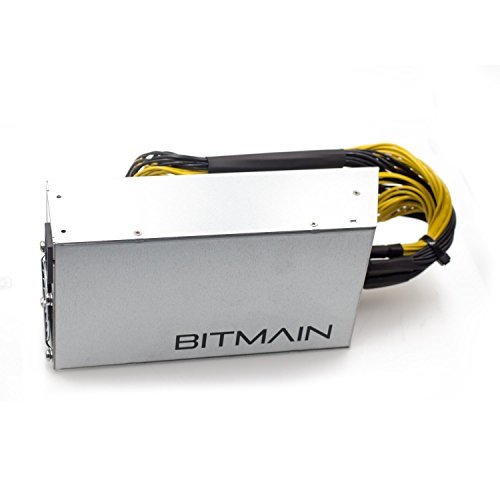

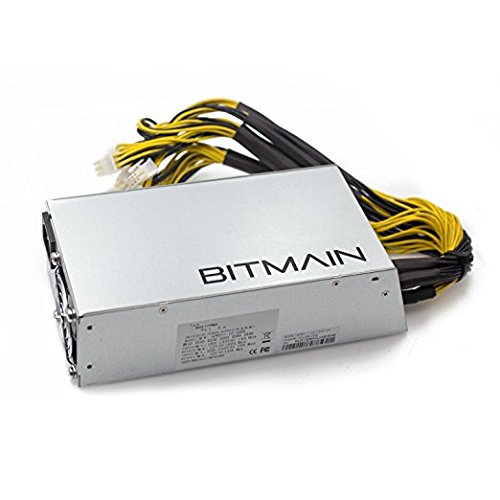

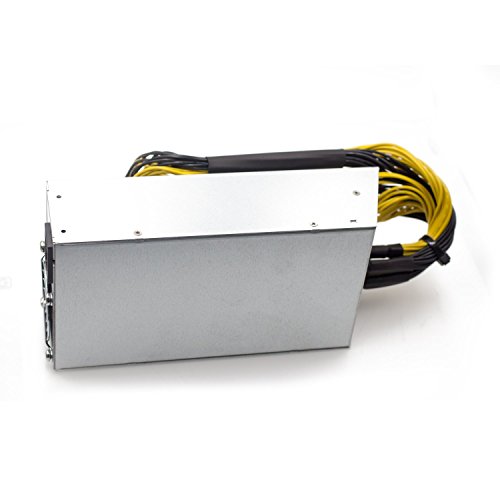

APW3++ Power Supply (APW3++ 1200W@110v 1600W@220v w/ 10 Connectors) for Antminer S9, L3+ or D3

Input: 100-140V AC 14A Max, Output: 12V 100A 1200W Max
The APW3++ can deliver a maximum power of only 1200W if it is connected to a 110V mains power supply.

Input: 200-240V AC 10A Max, Output: 12V 133A 1596W Max
To obtain the rated power of 1600W, the APW3++ must be connected to a 220-240V mains power supply.

Please check the mains power supply that is the standard in your region before ordering.

For S9 Miner, 208-260V power is required. 110/120V will not power a S9

Specifications:

Model Number: APW3++-12-1600-A3

Connectors: 10 of 6-pin PCIe Connectors

Low-voltage Input: 80-89V AC

Output Short Circuit: Yes

Output Over Current: 134-185A max.

Over Heart Protection: Yes

Structure: 2200mm * 108mm * 62mm

Package Includes:

1 x APW3++ Power Supply

Please Note:

Power cord is not included, requires standard PC power cable C13
This power supply designed for the AntMiner S9/ T9/ D3/ L3+
Model Number: APW3++-12-1600-A3
Maximum output: 1200W @ 110v-120v, 1600W @ 220v-240v
Connectors: 10 of 6-pin PCIe
Power cord is not included, requires standard PC power cable (C13)
