Pinty 3-9X40 Red Green Rangefinder Illuminated Optical Rifle Scope

Usage:
Focusing-
Look through scope 3 or 4 inches away from your eyepiece lens. If the reticle isn’t clear, loosen the knurled lock ring and rotate the eye bell until it’s clear. Then tighten the lock ring firmly.

Mounting-
Rotate the tube of the scope in order that the vertical line and horizontal line of the Mil-dot show respectively. Adjust the position of scope at the rifle until you’ll be able to see things clearly through it and your eye feel comfortable. Then tighten all screws to fix scope firmly to the rifle.

Maintenance-
Keep the scope in a place free of acid, alkaline and other corrosives. Dust and dirt at the surface of the scope will have to be cleaned with soft cloth or tissue and a little alcohol.

Fits all standard 20mm picatinny rail

Specifications:
Magnification: 3x-9x
Obj. diameter: 40mm
Reticle type: Rangefinder
Brightness keep watch over: Red 5 levels / Green 5 levels
Lens color: Blue
Field of view: 25′-14’@100yards
Eye relief: 3.3-2.7″

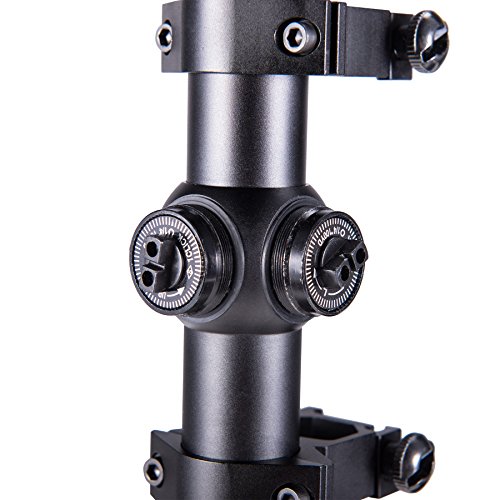

Windage & elevation click value: 1/4 MOA 1/4″@ 100yards
Exit pupil: 13.3mm-4.4mm
Tube diameter: 25.4
Battery required: 1x CR2032 battery (included)
1 inch high mount

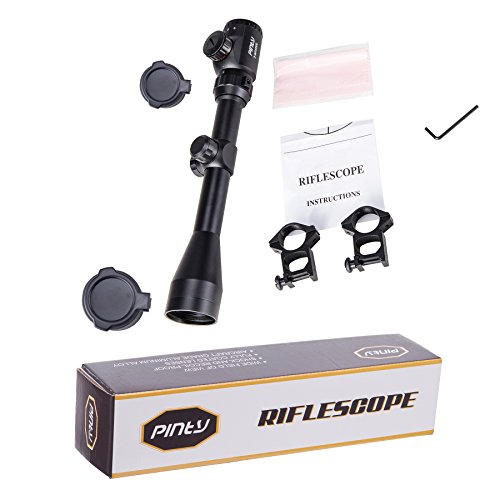

Package Includes:
1x 3-9x40e Scope
2x 1 inch high mount
1x Cleaning Cloth

Green and red illuminations, 5-level brightness to be had, magnifications from 3X as much as 9X, ultimate clarity and superior eyepiece guaranteed
Field of view: 14′-25′ @ 100yards; windage & elevation click value: 1/4 MOA 1/4″ @ 100yards, 2.7″-3.3″ eye relief
Rangefinder reticle provides fast, simple aiming points for quite a lot of shot distances

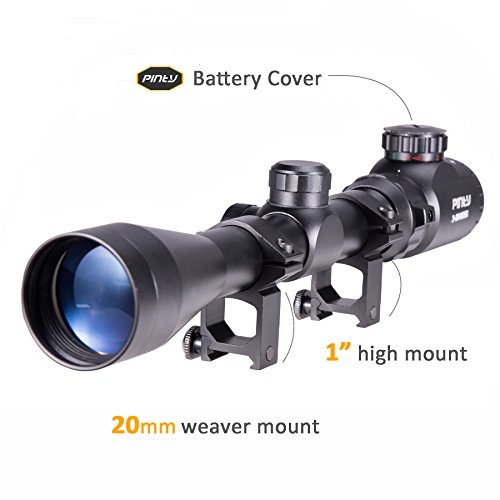

Two 1” complementary scope rings to be easily mounted onto any 20mm Picatinny or Weaver mount rails
O-ring sealing and nitrogen filled reticle ensures outstanding water and fog-proof performance
