120x120x25 mm
Connector 4-pin PWM
Bearing SSO
Blade Geometry Presure-optimized Nine Blade Design with Vortex-Control
Rotational Speed (+/- 10%) 1300 RPM
Rotational Speed with L.N.A. (+/- 10%) 900 RPM
Min. Rotational Speed (PWM, +/-20%) 300 RPM
Airflow 92,3 m�/h
Airflow with L.N.A. 63,4 m�/h
Acoustical Noise 19,8 dB(A)
Acoustical Noise with L.N.A. 12,6 dB(A)
Static Pressure 1,68 mm H2O
Static Pressure with L.N.A. 1,21 mm H2O
Max. Input Power 0,6 W
Max. Input Current 0,05 A
Voltage 12 V
MTBF > 150.000 h

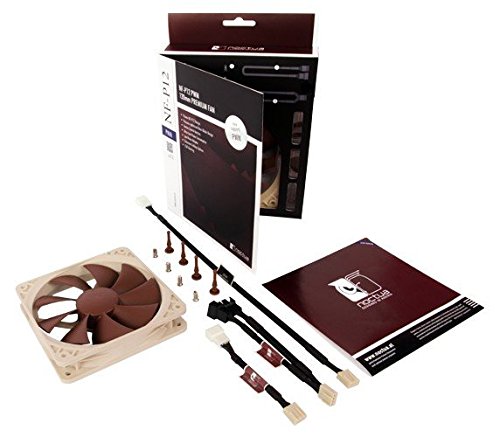

Package Includes

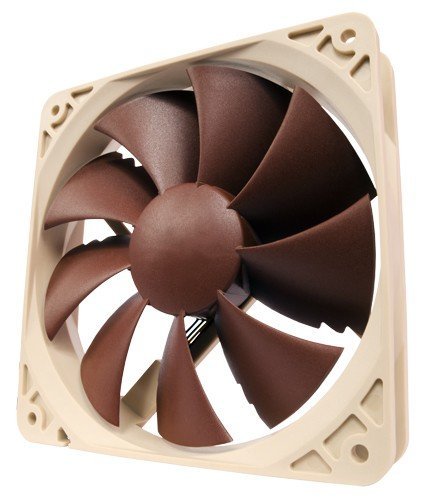

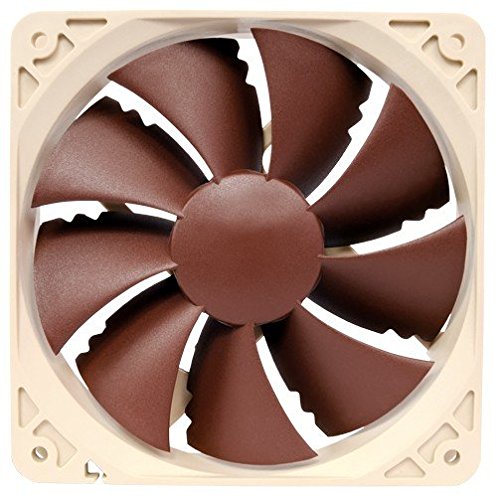

Noctua NF-P12 PWM 120mm Fan
Low-Noise Adapter (L.N.A.)
4-Pin Y-Cable
30cm Extension Cable
4 Vibration-Compensators
4 Fan Screws
Proven NF-P12 Design
PWM tCustom designed PWM IC with SCD, Ultra-Low Power Consumption
Vortex Control Notches
Extensive Cabling Options
SSO Bearing
