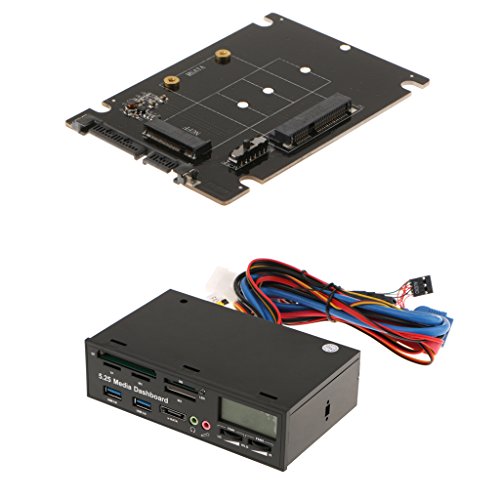

MonkeyJack 5.25 Media Dashboard Front Panel Audio Card Reader+mSata to SATA Converter

Description:

– 5.25″ Multi-function Front Panel Media Dashboard :The media dashboard is a 5.25″ form factor multi-function device designed to add more convenience to your PC.

– All-in-one Card Reader: Support CF/TF/M2/SD/XD/MS/MMC, At the same time Card reader can only read one memory card.

– 2 ports USB 3.0 HUB(HOST), transfer speed up to 5.0Gb/s. E-SATA port, transfer speed up to 3.0Gbps.

– With 1 e-SATA port, 1 microphone port, and 1 audio port.

– LCD display the CPU temperature, with two fan speed adjustable switch.

– Supports Operating System: Windows 2000 / XP / Vista and Win 7 / 8; Linux / MAC OS.

Specification:

– Material:Plastic

– Size:140x85x40mm

– mSATA/M.2 to SATA Adapter Card:

– Two-in-one SSD adapter board, MSATA / M.2 (NGFF) to SATA.

– Using SATA3 program, fast running, you can easily mSATA / M.2 (NGFF) into a standard SATA interface used in the computer.

– (Support mSATA interface / M.2 (B KEY) 2242/2260/2280 solid state hard drive)

– Double thick circuit board (PCB), in a variety of environments to effectively protect the long-term storage of hard disk data.

– Install a variety of hard drives, you can adjust the switch to the hard disk mode installed.

– Steps:

– 1, at an oblique 25 ° angle alignment NGFF slot, insert the hard disk

– 2, gently press, lock the screws

– 3, installed after the hard drive switch to the NGCC / mSATA side

Package Includes:

1 x Multi-Function Front Panel

4 x Screws

1 xUser Manual(English&Chinese)

1x Riser card

1x Screwdriver

3x Screws

1x Sticky pad

5.25″ Multi-function Front Panel Media Dashboard :The media dashboard is a 5.25″ form factor multi-function device designed to add more convenience to your PC.
All-in-one Card Reader: Support CF/TF/M2/SD/XD/MS/MMC, At the same time Card reader can only read one memory card.
2 ports USB 3.0 HUB(HOST), transfer speed up to 5.0Gb/s. E-SATA port, transfer speed up to 3.0Gbps.
With 1 e-SATA port, 1 microphone port, and 1 audio port.
LCD display the CPU temperature, with two fan speed adjustable switch.
