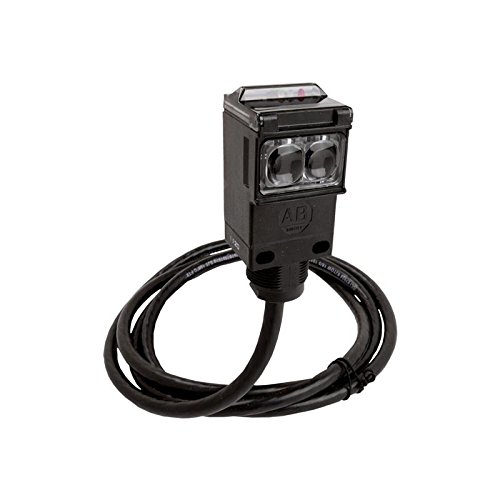

MMTC 60-2730 Nema 4 Exterior Retro-Reflective Photocell Sensor

PHOTOSWITCHR UL325 Recognized Photoelectric Sensors Models Sensors 10- 55V DC/20- 40V AC Models 70- 264V AC/DC Models 2m 300V cable 60–2728 60–2730 5-pin mini QD 60–2729 60–2731 Optical Sensing Mode Retroreflective Sensing Distance 2.54cm to 9.15m (1I to 30i) with AB#92–39 reflector Transmitting LED Visible Red, 660nm Field of View 1.5_ Operating Mode Light/dark operate selectable Sensitivity Adjustment Yes Electrical Operating Voltage 10–55V DC/20–40V AC 70–264V AC/DC Provide Current 40mA max 15mA max Power Consumption 2.2W / 1.6VA Protection False pulse on power-up, overvoltage, reverse polarity, outputs short circuit (SCP) secure Output Sort SPDT EM Relay Output Load Current/Voltage 1A @ 264V AC, 2A @ 132V AC Response Time 15ms Leakage Current Now not applicable Mechanical Housing/Lens Subject material Valoxt/Acrylic LED Indicators See table under Connection Varieties SJTOW outside rated 2m, 300V cable, 5-pin AC mini QD Supplied Accessories AB #60–2725 affect bracket Optional Accessories #92–39 reflector, 889N–F5AF–6F cordset Environmental Operating Temperature –34_C to +70_C (–29_F to +158_F) Relative Humidity 5-95% Operating Environment NEMA 3, 4, 4X, 6P, 13, IP67 (IEC529); 1200psi (8270kPa) washdown Approvals c–UL recognized (UL325), CE marked for all applicable directives Protections All versions: false pulse, reverse polarity, overload, short-circuit Vibration 10–55 Hz, 1mm amplitude, meets or exceeds IEC 60947–5–2 Shock 30G with 1ms pulse duration, meets or exceeds IEC 60947–5–2
Voltage: 110VAC
Sensing Distance=30 Feet
Comes with Bracket and Reflecto
NEMA 3, 4, 4X, 6P & 13
for more information refer under
