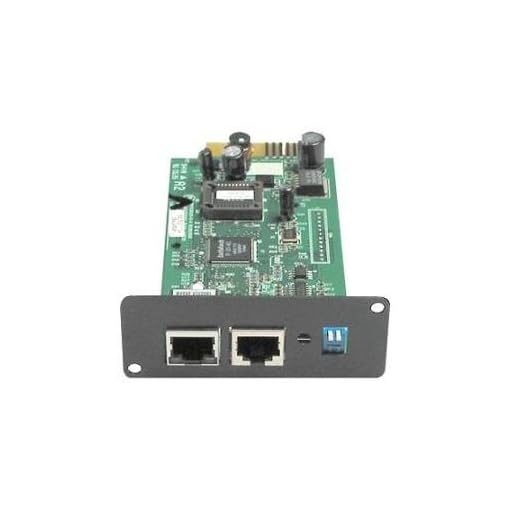

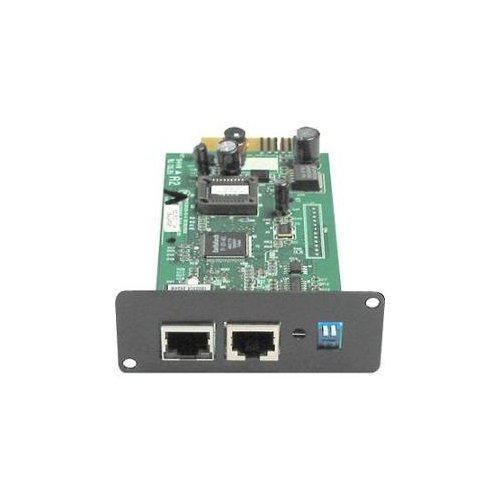

Minuteman SNMP-NET Remote Management Adapter, 10Mb LAN, RS-232

SNMP-NET is an interface between the Enterprise Plus or Endeavor UPS and the network. It can obtain the status from a UPS and issue commands to it. SNMP-NET supports two kinds of protocol – SNMP and HTTP for user access. Through the SNMP NMS and web browser, the user can obtain the UPS status; issue commands to UPS and set-up the SNMP-NET through the network. SNMP-NET also provides shutdown software for various operating systems. The shutdown software that runs under various OS can link to the SNMP-NET automatically through the network and communicate with SNMP-NET via SNMP protocol. The shutdown software retrieves UPS information from SNMP-NET. The shutdown software will then proceed to the shutdown process in order to prevent the abnormal shutoff of host or server due to power events.
Network connection through RJ45 connector
Network UPS management
Remote UPS monitoring via SNMP, HTTP
Configure UPS and system functions from any client (password protected)
Event logs & metering data stored in the EEPROM
