Mini SDI to HDMI converter, Lollipop SDI HD-SDI to HDMI Mini Adapter Converter, 1080p for Driving HDMI Monitors

The MINI SDI to HDMI converter allows SD-SDI, HD-SDI and 3G-SDI signals to be shown on HDMI displays at the same time as ensuring high bit rates of 2.970 Gbit/s to provide you with fast signal transmission with none loss. For professionals which means that it’s now more uncomplicated to distribute and extend your 3G SDI signal at the same time as giving you the facility to display your work on HDMI displays way to the built in HDMI converter.

Operation at 2.970Gbit/s, 1.485Gbit/s and 270Mbits/s
Supports SMPTE 425M, SMPTE 424M, SMPTE 292M, SMPTE 259M-C
Equalized and re-clocked loop output Integrated audio de-embedder for a maximum of 8 channel, 48 kHz audio
Conversion from SMPTE 425M level B to Level A 1080p 50/59.94/60 4:2:2 10-bit

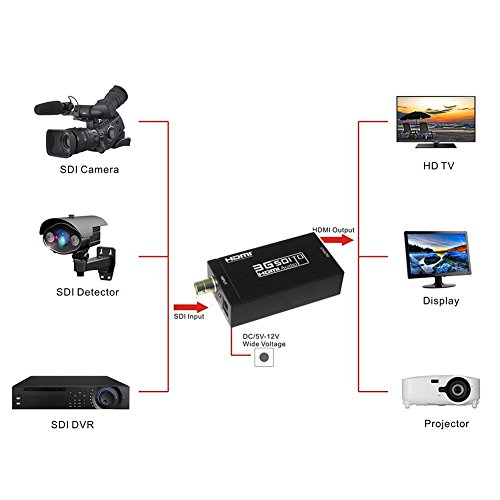

Connect with other units to increase your signal over long distances

Specification:

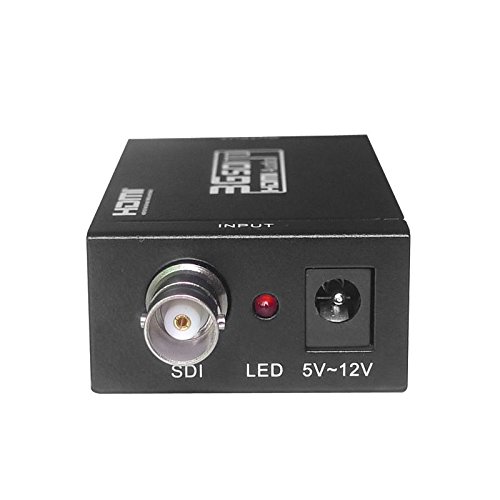

Input Port: 1 x BNC (SDI/HD-SDI/3G-SDI)

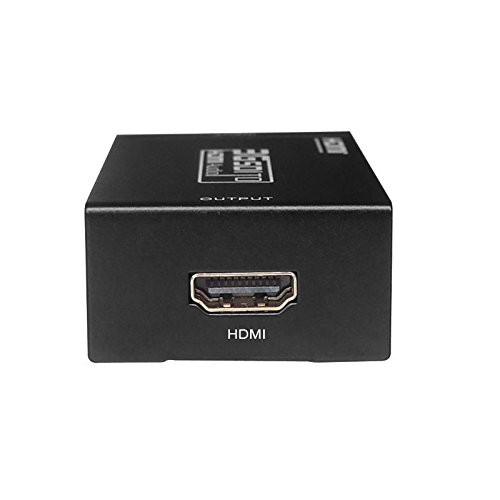

Output Port: 1 x HDMI
SDI Transmission Rates: 2.970 Gbit/s and 2.970/1.001 Gbit/s
In/Output Resolution: 480i, 576i, 720p,50/59.94,60, 1080i,50/59.94/60 1080p,23.97/24/25/29.97/30/50/59.94/60
Power Supply: DC 5V -12V
ESD Protection Human body model: ±8kV (air-gap discharge), ±4kV (contact discharge)
Dimension: 100mm x 65mm x 25 mm
Relative Humidity:20 ~ 90% RH (Non-condensing)
Power Consumption (Max): 5W

Package Included:
·1x3G SDI to HDMI Converter
·1x5V DC Power Supply Adaptor
·1xUser Manual Manual
HDMI to SDI: Allow HDMI signals to be shown on SDI display. 480i/576i to SD-SDI; 720p/1080i to HD-SDI; 1080p to 3G-SDI.
HDMI Input: 480i at 59.94 Hz, 576i, 720p at 50/59.94/60 Hz, 1080i at 50/59.94/60 Hz, 1080p at 23.98/24/25/29.97/30/50/59.94/60 Hz.
SDI-OUT: This slot is where you connect the SDI display with the coaxial cable with SDI transmission rate 2.970 Gbit/s and 2.970/1.001 Gbit/s.
Auto detect resolution of HD-SDI, SD-SDI and 3G-SDI Full HDMI supported with embedded 48KHZ digital audio
No wish to install drivers, portable, flexible, plug and play. Low power, No power adaptor.
