MakerFocus ESP32 Development Board WiFi with 0.96inch OLED Display WiFi Kit32 Arduino Compatible CP2012 for Arduino Nodemcu

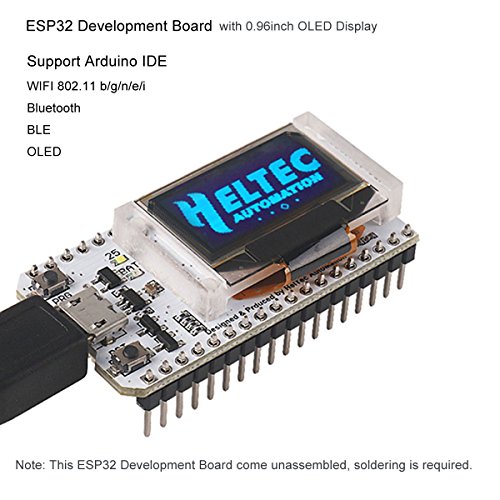

ESP32 Development Board WiFi with 0.96inch OLED Display WIFI Kit32 Arduino Compatible CP2012 for Arduino Nodemcu

Description:

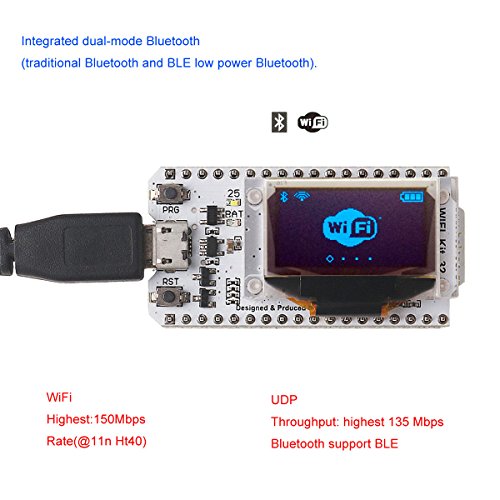

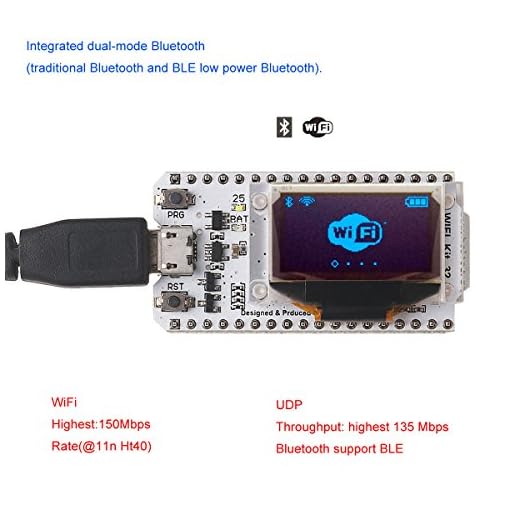

WIFI Kit series is the new development of the cost-effective networking program, the main chip using Lexin ESP32, Tensilica LX6 dual-core processor, 240MHz, computing power up to 600DMIPS, chip built-in 520 KB SRAM, 802.11 b / g / N HT40 Wi-Fi transceiver, baseband, protocol stack and LWIP, integrated dual-mode Bluetooth (traditional Bluetooth and BLE low power Bluetooth).

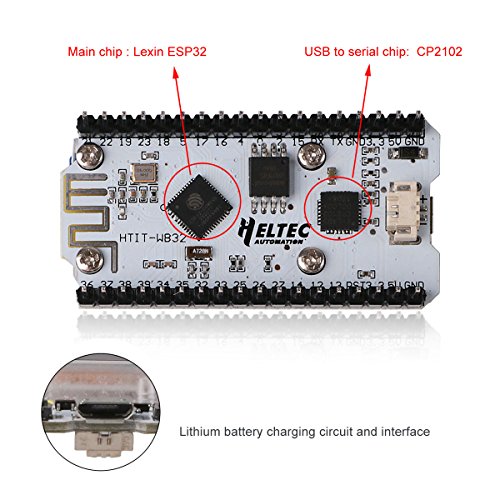

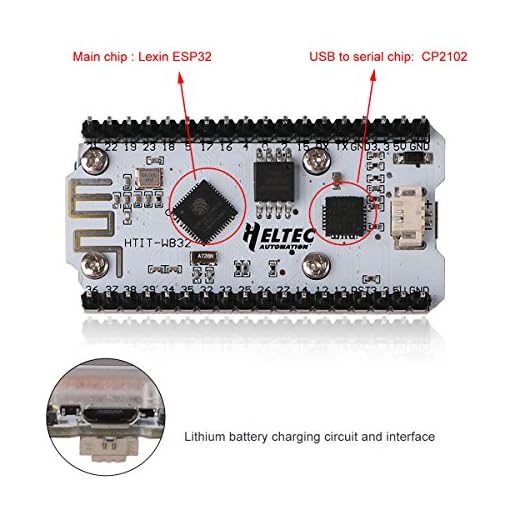

Onboard 32MByte Flash, Wi-Fi antenna, 0.96-inch blue OLED display, lithium battery charging circuit and interface, CP2102 USB to serial chip, the perfect support for Arduino development environment

Specification:
Operating voltage: 3.3V to 7V
Operating temperature range: -40 ° C to + 90 ° C
Data rate: 150 Mbps 11n HT40,72 Mbps 11n HT20,54 Mbps 11g, 11 Mbps 11b
Transmit power: 19.5 dBm 11b, 16.5 dBm 11g, 15.5 dBm 11n
Flash Size : 32MByte

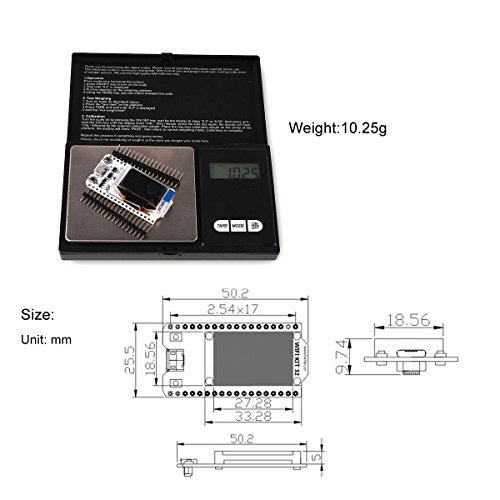

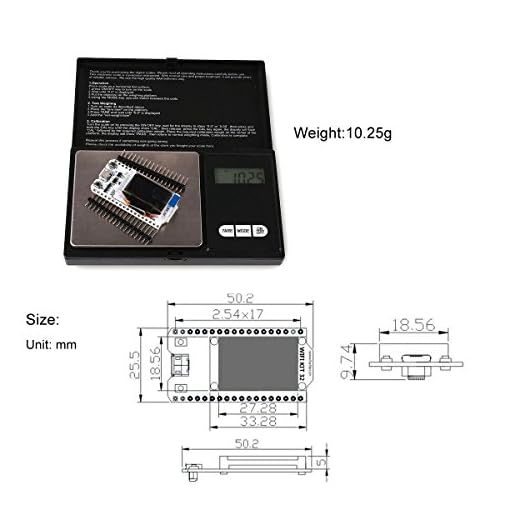

Module Size:50*25.4*10.3 mm

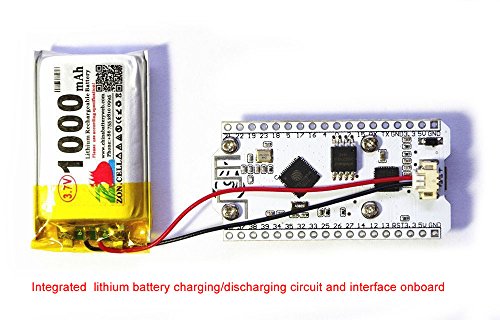

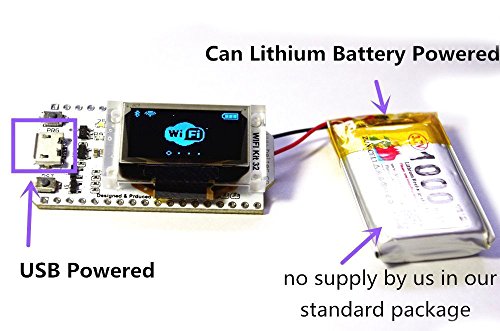

Lithium battery interface:2Pin-1.25mm interface
Receiver sensitivity up to – 98 dBm
UDP continues to throughput by 135 Mbps
Supports Sniffer, Station, softAP and Wi-Fi Direct modes

Package Including

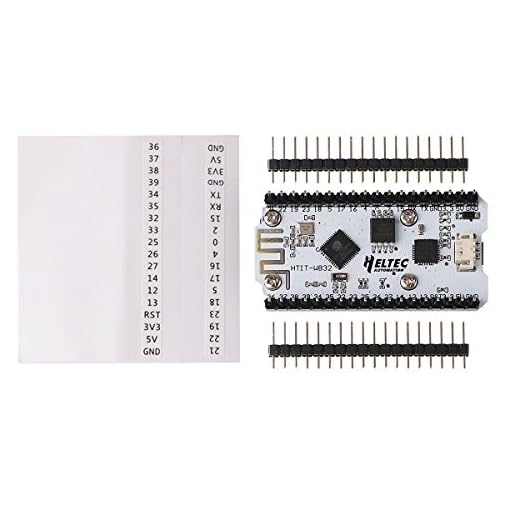

1 * ESP32 Development Board with OLED

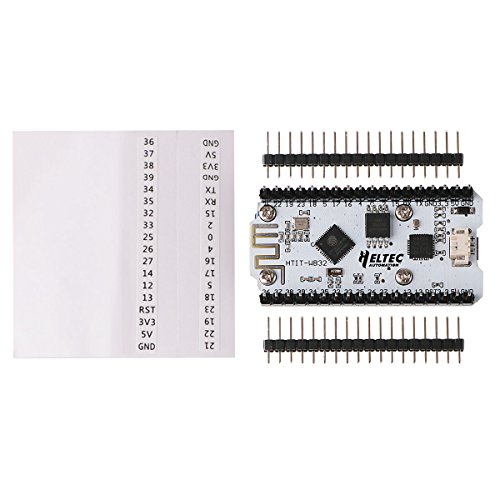

2 * Pin headers
Note:This item come unassembled, soldering is required. PLS feel free to email us if you need documentation. How to email us: Click”MakerFocus” and ask a question.
Document link: https://drive.google.com/open?id=0B8DSGdAr8_31d19WQmN6SE1fLVE; GitHub: https://github.com/Heltec-Aaron-Lee/WiFi_Kit_series
Transmit power: 19.5 dBm 11b, 16.5 dBm 11g, 15.5 dBm 11n
UDP continues to throughput by 135 Mbps, Receiver sensitivity up to – 98 dBm, Supports Sniffer, Station, softAP and Wi-Fi Direct modes

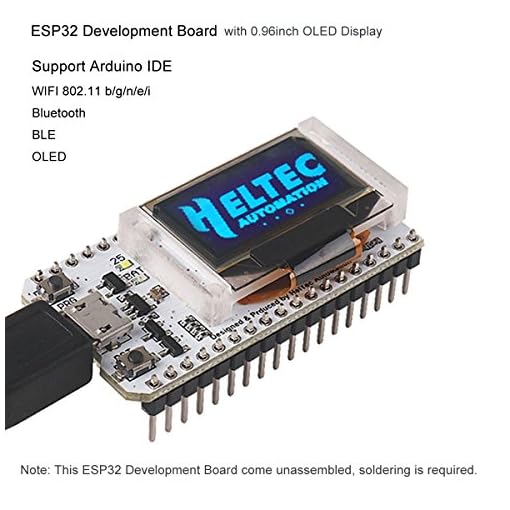

This ESP32 development board come unassemled, soldering is required.
