Laird PAV90209H (LP) RFID Panel Antenna (FCC)

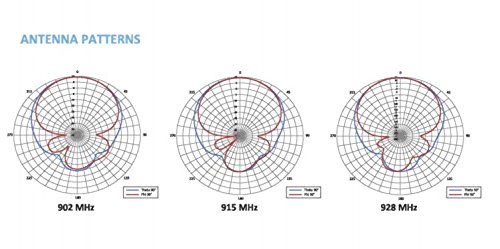

The Laird PAV90209H antenna is a linearly polarized panel antenna that provides reception and transmission of signals within the 902-928 MHz frequency band. Laird’s industry-renowned design methodology achieves maximum efficiency and performance across all the frequency band. Both VSWR and efficiency are superb and make allowance the user to succeed in the utmost performance for an antenna of this kind. The antenna is housed in a heavy-duty radome enclosure that may be in an instant wall mounted. An optional articulating mount allows either wall or mast mounting. The antenna is offered with an integrated fixed connector. SPECIFICATIONS ELECTRICAL: Operating Frequency: US (902-928 MHz) Polarization: Linear Gain: 9 dBi Max Read Distance: Not Published Elevation Beamwidth: 70° Azimuth Beamwidth: 70° MECHANICAL: Connector Type: N-type Female Cable: Not Included Mounting: Threaded Stud Dimensions: 10.2 x 10.2 x 1.32 in (259.1 x 259.1 x 33.5 mm) Weight: 2.3 lbs (1043.3 g) ENVIRONMENT: IP Rating: IP 67 Operating Temperature: -40°C to +85°C
The Laird PAV90209H (LP) RFID Panel Antenna is a perfect solution for warehouse, distribution center, airports and hospitals, transit terminals and conveyor belt applications.
Weather and UV resistant radome.
Low profile, linearly polarized antenna.
Equipped an extremely low VSWR and an IP67 rated enclosure.
US (902-928 MHz).
