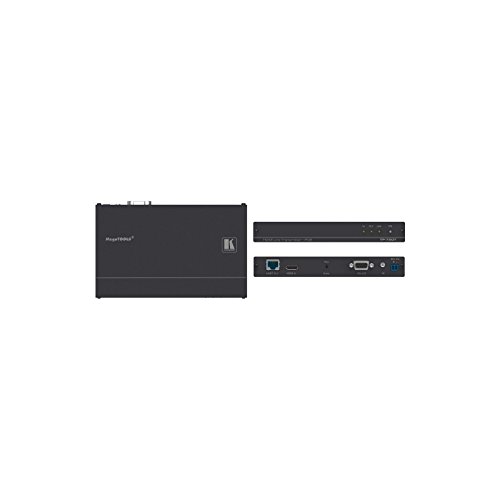

Kramer TP-780T | 4K60 HDMI HDCP PoE RS 232 HDBaseT Transmitter

The TP?780T is a high?performance, long?reach HDBaseT transmitter for 4K@60Hz (4:2:0) HDMI, RS?232 and IR signals over twisted pair. The TP?780T converts all input signals into an HDBaseT signal that it transmits over twisted pair. The extended HDBaseT signal is decoded by the receiver, such as Kramer TP?780R, back to 4K@60Hz (4:2:0) HDMI, RS?232 and IR output signals.

Reach Extension – Up to 40m (130ft) at 4K@60Hz (4:2:0); up to 70m (230ft) at full HD (1080p @60Hz 36bpp), when using Kramer HDBaseT cables, Transmitted Data Bandwidth – Up to 10.2Gbps (3.4Gbps per graphic channel)
Transmitter Compliance – Complies with HDBaseT receiver, Video Resolution – Up to 4K@60Hz (4:2:0) 24bpp
HDMI Signal Transmission – HDMI 2.0 and HDCP 2.2 compliant signal, supporting deep color, x.v.ColorTM, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS-HD, CEC, Full HD, 2K, 4K, and 3D
Multi-channel Audio Transmission – Up to 32 channels of digital stereo uncompressed signals for supporting surround sound at studio level
EDID and CEC Pass Through – Passes EDID and CEC signals from the source to the display, Bidirectional RS-232 Transmission – Serial interface data flows in both directions to allow data transmission and device control
