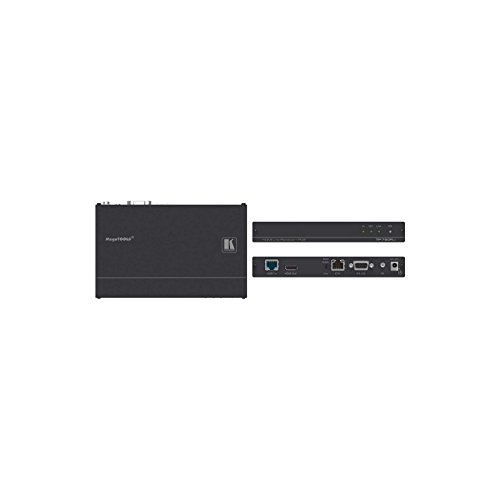

Kramer TP-780RXR | 4K60 HDMI HDCP PoE HDBaseT Receiver with Ethernet

The TP?780RXR is a high?performance, extended?reach HDBaseT receiver for 4K@60Hz (4:2:0) HDMI, Ethernet, RS?232 and IR signals over twisted pair. The TP?780RXR decodes an HDBaseT signal that it receives over twisted pair from a transmitter, such as TP?780TXR into 4K@60Hz (4:2:0) HDMI, Ethernet, RS?232 and IR output signals.

Reach Extension – Up to 100m (330ft) at 4K@60Hz (4:2:0); up to 130m (430ft) at full HD (1080p @60Hz 36bpp); up to 180m (590ft) at HDBaseT ultra mode and full HD (1080p @60Hz 24bpp), when using Kramer HDBaseT cables
Transmitted Data Bandwidth – Up to 10.2Gbps (3.4Gbps per graphic channel), Transmitter Compliance – Complies with HDBaseT transmitter
Video Resolution – Up to 4K@60Hz (4:2:0) 24bpp, HDMI Signal Transmission – HDMI 2.0 and HDCP 2.2 compliant signal, supporting deep color, x.v.ColorTM, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS-HD, CEC, Full HD, 2K, 4K, and 3D
Multi-channel Audio Transmission – Up to 32 channels of digital stereo uncompressed signals for supporting surround sound at studio level, EDID and CEC Pass Through – Passes EDID and CEC signals from the source to the display
Ethernet Transmission – Ethernet interface data flows in both directions to allow extension of up to 100Mbps Ethernet connectivity for LAN communication and device control
