Juentai JT-6188 Dual Band VHF/UHF 136-174/400-480MHz VHF 25Watt UHF 20Watts Dual Band Two Way Radios Mobile Transceiver Walkie Talkie by Juentai

Note: October 19, 2015, update to the recent version adds features menu items 44-48!

The JT-6188 MINI UV Dual Band Radio offers you a reliable, clear and efficient communications service which in enhanced by an ergonomic design and intuitive user controls. Inherently reliable you’ll rely on your JT-6188 regardless of where you’re within the harsh environment.

The JT-6188 is cost-effective, multi-functional and will meet your entire VHF/UHF band communication needs it doesn’t matter what the placement.


Features & Functions

1. Frequency Range: VHF 136-174MHZ UHF:400-480MHz

2. Output Power: VHF 25Watt, UHF 20Watt

3. MSK/5Tone/2Tone/DTMF/CTCSS/DCS

4. Optional signal setting

5. FM Radio Function

6. PTT ID

7. Auto Lock

8. Remote stun

9. Remote Kill

10. Channel Name set

11. 200 Channels


General

Frequency Range: VHF:136~174MHz UHF:/400-480MHz

Channel Capacity: 200

Channel Spacing: 25KHz 20K 12.5

Frequency Stability: 2.5ppm

Operating Temperature: -20℃ ~ + 60℃

Operating Voltage: 13.8V DC ± 15%

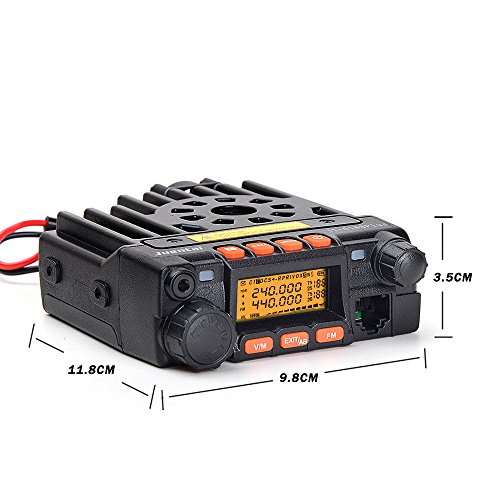

Dimension (HxWxD): 98(W)*35(H)*118(L)

Weight (with bracket): 1kg


Receiver

Sensitivity: 0.25V / 0.35V

Channel choice:≥70dB /≥60dB

Intermodulation: ≥65dB/≥60dB

Inter-modulation Rejection: ≥60dB/ ≥65dB

Spurious Rejection: ≥70dB /≥70dB

Audio Distortion: ≤5%

Audio output power:≥2W@10%


Package Include:

1x Radio

1x Keypad Microphone

1x CAR DC Power Cable

1x Bracket

1x Bracket Screw

1x User Manual
1. Frequency Range: VHF136-174MHZ UHF 400-480MHz
2. Output Power: VHF 25Watt, UHF 20Watt
3. MSK/2Tone/5tone
4. Optional signal setting
5. FM Radio Function,PTT ID,DTMF,Remote stun,Remote Kill,Channel Name set
