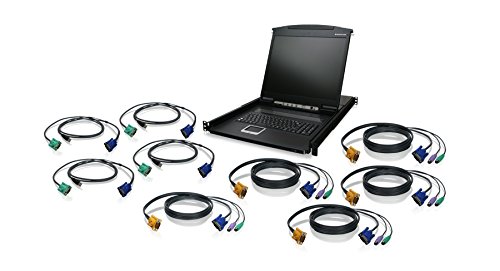

IOGEAR 8-Port 19-Inch LCD KVM Drawer Kit with USB KVM Cables, GCL1908KITU

IOGEAR’s GCL1908 is an integrated LCD console with an 8-port KVM (keyboard, video, and mouse) switch that offers secure access to 8 VGA, USB or PS/2 computers. It features a convenient rack mountable sliding / retractable 19″ TFT LCD active matrix monitor and keyboard with built-in touchpad for a space-saving and streamlined integration. The GCL1908 fits into a universal 1U rack mount space. The GCL1908 supports both PS/2 and USB keyboards and mice for the connected computers, and supports USB peripheral devices for the attached computers. A single GCL1908 can control up to 8 computers, but as many as 8 additional compatible KVM switches can be cascaded to reach up to 128 computers controlled from a single keyboard, monitor and mouse console. Additional USB KVM Cables – This kit includes an additional 7 USB KVM cables (3 x 6ft, 4 x 10ft). Our custom-made cables are designed to provide the highest signal capacity with the lowest signal loss. This important technology produces the highest quality video output – even after long distance transmission or in the most electronically noisy environments such as server cabinets. IOGEAR’s premium custom-made KVM cables guarantee optimum signal integrity for high-grade server needs. The keyboard and mouse cables are made of double-sealed 22-gauge wire and are neatly wrapped with a heavy-duty video cable for simplified connections. Can only be cascaded with other IOGEAR KVMs: GCS1808 or GCS1716 models. Requirements – Computers: VGA, SVGA, or MultiSync video graphics card with an HDB-15 port. PS/2 mouse and keyboard ports (6-pin mini DIN) or 1 USB port
Integrated 8-port KVM console featuring a 19″ TFT LCD active matrix monitor, keyboard and touchpad
1280×1024 resolution on 19″ rack mount LCD provides a sharp video display. Adjustable mounting rail to fit different sizes of racks
Easy to operate – computer selection via front panel pushbutton LED’s, intuitive OSD (on-screen display) and hotkeys
External USB or PS/2 with VGA Console port. Cascade up to 2 levels – control up to 128 computers from a single console
Security – 2 level password protection for OSD. Rack mountable in a 19″ (1U) system rack
DDC Emulation – Video settings of each computer are automatically adjusted for optimal output to the monitor
Custom ASIC provides an auto-sensing function that recognizes the position of each station on the installation
Fully Supports DDC2B
