ikaufen Capture Box card game and streaming 4K HDMI 1080P UHD videos to the Micro USB flash two HDMI inputs HDML Cloner Remote for PS3 PS4 Xbox one AV Blu-ray DVD TV HDTV Set TOP BOX

4K UHD PVR Product Specification

Key Features

1. 4K2K UHD Recording from DVD, OTT, Receiver, PC, PS and Xbox
2. Dual mode design, HD recording on external USB storage (Standalone) and TF CARD or PC HDD
3. OSD control with multi-language
4. H.264 HD hardware encoding up to 1080P 30FPS
5. 2 Port HDMI input,1Port HDMI output,AV/L/R Cable
6. HDMI pass-through without latency
7. Recording data rate up to 16Mbits/sec in MP4 format
8. Recording audio via integrated microphone input

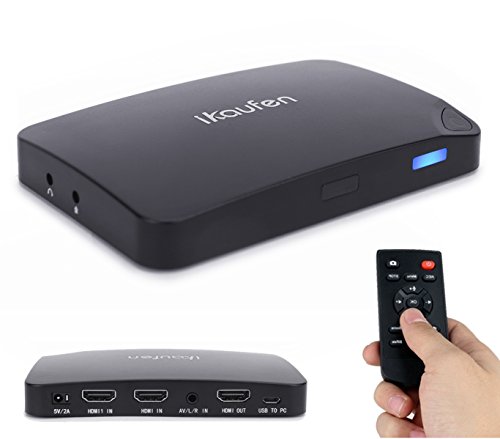

9. Support remote control (IR)

Specification

Bit rate: Bit rate Max: 16Mbps, default 10Mbps
Recording file size: Max 2GB, new recording file generated automatically after each 2GB recorded
Input: HDMI
Analog MMI (Component (YPbPr) + Composite (CVBS) + VGA)
MIC (Audio in) & Remote controller (IR in)

Output: HDMI
USB 2.0 storage (HDD & Pen drive)
Micro USB for PC connection

Loop Through : 720*480(30p) , 720*480(60p) , 720*576(30p) , 720*576(60p)
1280*720(30p),1280*720(60p),1920*1080p(30p),1920*1080p(60p), 2560×1040, 4096×2160

Capture Resolution : Up to 1080p @ 30fps

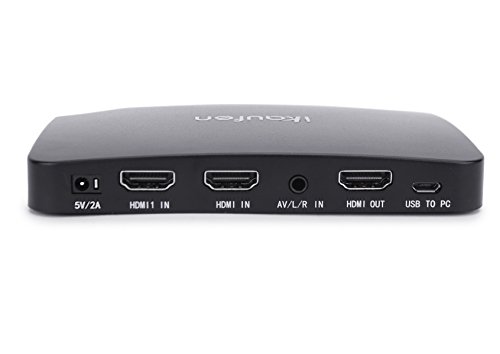

Interface

2 HDMI input/output

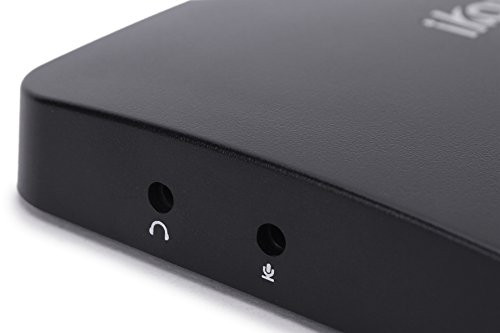

CVBS / L/R/ Microphone input / Audio out
USB 2.0 external hard drive (IDE and SATA/2.5″ & 3.5″/7200, 5400, 4200)
USB output to PC and TF Card
Power 5V/2A input

Package Contents

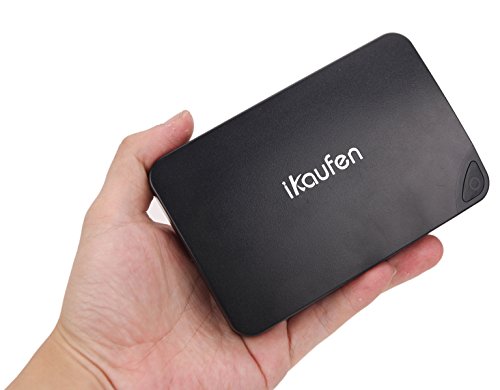

1x UHD capture box
1x Remote control unit
1x HDMI cable
1x Micro USB to USB cable
1x AV/L/R Cable
1x Software DVD
1x Power Adapter 5V/2A
FULL 1080p/720p video capture with one click from any video source such as set-top box, video discs and game consoles, no PC required.
4K HDMI 1080P UHD Video Capture Box Card Remote for PS3 PS4 Xbox one Wii US Plug, No Video Split – Manually adjust the recording bitrate to decide whether to save as one complete video or split into several 2GB files.
HDMI TV HDML-Cloner Box Schedule recording. Record videos automatically at the set time and never miss any wonderful moment while you are away.
2in1 UHD Video Capture Recording 4K 1080P Grapper BOX , Dual-HDMI Input Signal Switch, Remote Control, Screenshot Capture, CEC wake-up.

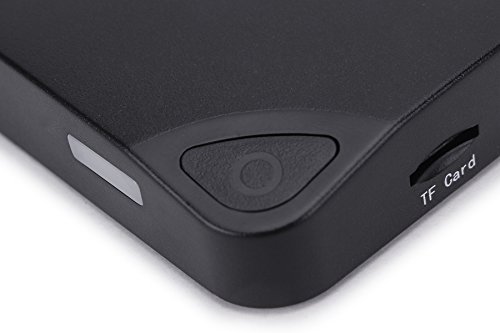

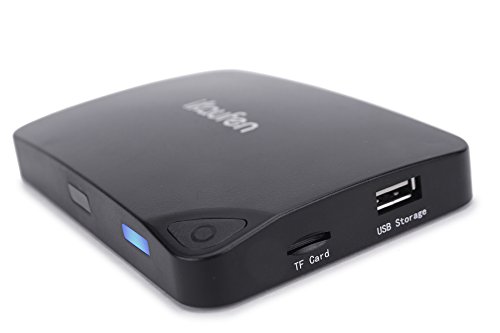

Simply insert the USB flash drive or TF (Micro SD) card to record videos anytime (H.264 encoding). Quick heat dissipation capability.
