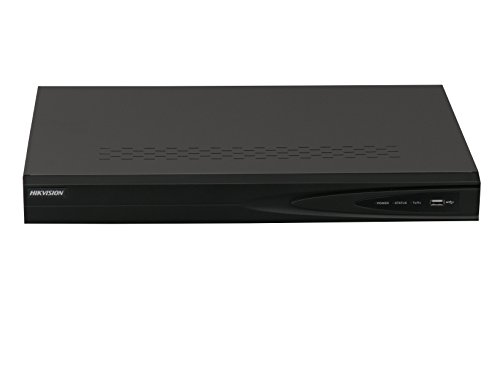

HIKVISION 16CH 16 Ports PoE DS-7616NI-E2/16P NVR Network Video Recorder

HIKVISION 16CH 16 Ports PoE DS-7616NI-E2/16P NVR Network Video Recorder

Features:

• Reside View from Mobile phone or Internet

• As much as 5 MP Resolution Recording

• HDMI and VGA output at As much as 1920×1080P Resolution

• HDD Quota and group management

• Third-Birthday celebration network cameras supported

• 4 Independent PoE Network Interfaces

Specifications:

• Video/Audio Input

• IP Video Input: 16-ch

• Two-way Audio: 1-ch RCA(2.0Vp-p, 1kΩ)

• Video/Audio Output

• Decoding resolution: 5MP / 3MP / 1080P / UXGA / 720P / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF HDMI / VGA Output: 1CH Resolution: 1920×1080P/60Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz

• Audio Output: 1-ch RCA(Linear, 1kΩ)

• Playback Resolution: 5MP /3MP / 1080P / UXGA / 720P / 4CIF / VGA / DCIF / 2CIF / CIF / QCIF

• Synchronous Playback: 4-ch

• Interface Type: 1 SATA Interface

• Capacity: As much as 4TB capacity for each and every disk

• Network Interface: 1 RJ45 10M/100M/1000M adaptive Ethernet Interface, /N models give a boost to 8 independent 10/one hundred Mbps Ethernet interfaces for built-in switch

• USB Interface: 2 USB 2.0 Interfaces

• Serial Interface: 1 RS-485 interface (Reserved)

• Power Supply: 12 VDC

• Consumption: ≤ 10 W (without hard disk)

• Working Temperature: -10 °C ~ +55 °C

• Working Humidity: 10% ~ 90%

• Chassis: Stand-by myself 1U chassis

• Package Includes:

• 1 x HIKVISION 16CH 16 Ports PoE DS-7616NI-E2/16P NVR Network Video Recorder

• 1 x Mouse

• 1 x AC Power Adapter

• 1 x Installation Screws

• 1 x Data Cables

• 1 x English User Manual

Note: Hard Drive isn’t included in Package

Reside View from iPhone/Android or Web
HDD Quota and group management
HDMI and VGA output at As much as 1920×1080P Resolution
As much as 5 MP Resolution Recording
Note: Hard Drive isn’t included in Package
