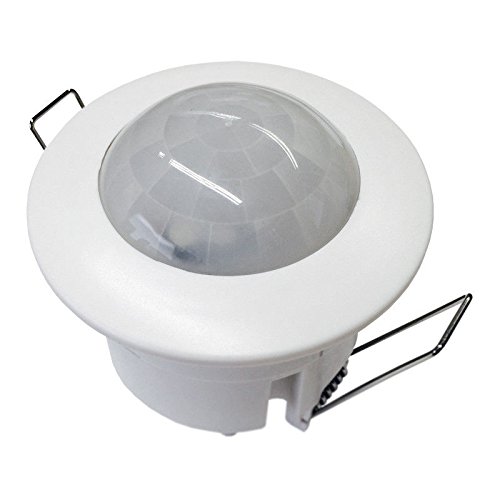

Hanperal 110v-220v 360° Infrared Recessed PIR Ceiling Motion Sensor Detector Light Switch, Motion Light Sensor

Specification :
Power Sourcing : 110V/AC-220V/AC
Detection Range : 360°
Power Frequency : 50Hz
Working Temperature : -20 – 40°C
Ambient Light : 3-2000LUX (Adjustable)
Working Humidity : <93%RH
Time-Delay : Min.10sec±3sec Max.7min±2min
Installing Height : 2.2m – 4m
Power Consumption : 0.45W (work)， 0.1W (static)
Rated Load : 1200W (incandescent lamp) 300W (energy-saving lamp)
Detection Motion Speed : 0.6 -1.5m/s
Detection Distance : 6m （max)
Function :
1.Identify day and night automatically. Can adjust ambient light according to your desire : when turn to SUN (max), it’ll work in the daytime and at night. When turn to MOON (min),
it will only work under less than 3LUX circumstance. As for Adjustment, please refer to in way.
2.Time-delay is added continually : when it receives the second one induction signal after the first inductor, it’ll compute time once more on the remainder of the first time-delay basic (Set time) .
3.Time-delay adjustment : it may be set according to your desire. The minimum is 10±3 sec; the maximum is 7±2min.
Note :
1.Will have to be installed by electrician or experienced man.
2.Avoid installing it on the unrest objects.
3.There should not be hindrance and moving object in front of the detection window effecting detection.
4.Avoid installing it near air temperature alteration zones such as air condition, central heating, and so forth.
5.Considering your safety, please don’t open the cover when you find the hitch after installation.
Package included :
1 x 360 Degree Motion Sensor Detector Switch
NoticeDue to the size by the manual measurement, there may has a little errors between 1-3mm, please do not mind it before you buy it, thank you so much!
Power Sourcing : 110V/AC-220V/AC
Detection Range : 360°
Rated Load : 1200W (incandescent lamp) 300W (energy-saving lamp)
Detection Distance : 6m max (<24°C)
The product adopts good sensitivity detector, integrated circuit. It gathers automatism, convenient protected, saving-energy and practical functions. Utilizes the infrared energy from human as regulate-signal source, Can start the load at once when one enters detection field. Can identify day and night automatically. Easy to install and used widely.
