FlightAware ADS-B Complete System Raspberry + 1090MHz Antenna + USB + SMA Filter PiAware + 25ft RF Antenna Cable Track Planes

Includes: 1 (One) Raspberry 3 Model B +ADS-B 1090MHz PRO USB STICK + Band-pass SMA Filter with pigtail plus 5dBi Antenna + Cable for FlightAware.

It is a perfect House Station kit for your FlighAware system.

Raspberry 3 Model B Comes with pre loaded micoSD card with PiAware, all it’s important to do is Claim your device and you’re ready (will have to register an account with FlightAware, internet connection is required).
You’ll be able to claim your device the use of provided Cat5 cable or You’ll be able to enable WiFi (keyboard and mouse will be required – NOT INCLUDED). SMA (female to male) 1090MHz Mode S filter. Designed to reduce interference and significantly enhance valid mesage rate of ADS-B/Mode S receivers. Passes range 980MHz – 1150MHz. Impedance is 50ohms and insertion loss is <2.5dB.

1 – Raspberry 3 Model B with pre loaded microSD card ready to be used!

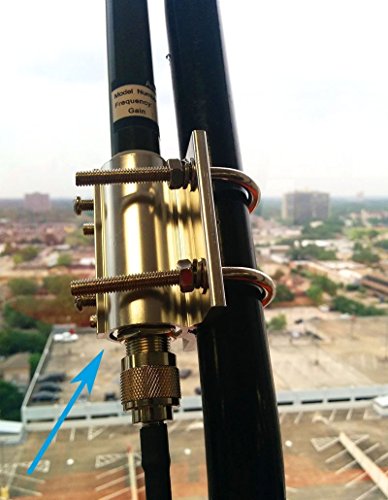

1 – 5dbi (26″ long) Antenna with cable.
1 – RFC240 Cable 25 feet long.
1 – PRO STICK USB Flight Aware Receiver 20dB Integrated Amplifier which can increase your ADSB range 30-100% more compared to other dongles.
1 – 1090MHZ ADS-B / Mode S Filter
1 – SMA Female to SMA Male RG316 cable.
Passes range 980MHz – 1150MHz
Reduces RF noise, increasing number of ADS-B/Mode S messages
Ideal for RTL-SDR USB Dongle receivers like PiAware
For safety reasons, the usage of a lightning arrester is highly beneficial.
Complete PiAware System Ready to Use. Track planes near you.
Raspberry 3 Model B Comes with pre loaded micoSD card with PiAware, claim your device and you’re ready.
Includes Raspberry PI 3 Model B + 1090MHz ADS-B Antenna + 25 Foot Cable + USB PRO STICK + Filter for Mode S and ADS-B data for FlightAware
Instructions Included
