Fingerprint Scanner TTL GT511C1R – 3.3V to 6V – With cable

Fingerprint scanners are awesome. Why use a key you probably have one right at the tip of your finger? Unfortunately, they’re regularly unreliable or difficult to implement. Well not anymore! We’ve found this great fingerprint module from ADH-Tech that communicates over TTL Serial so you’ll easily embed it into your next project.

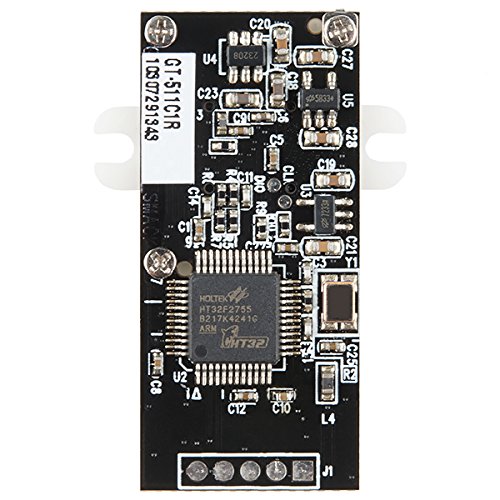

The module itself does the entire heavy lifting at the back of reading and identifying the fingerprints with an on-board optical sensor and 32-bit CPU. All you need to do is send it simple commands. To get started, just register each fingerprint that you need to store by sending the corresponding command and pressing your finger against the reader three times. The fingerprint scanner can store different fingerprints and the database of prints can even be downloaded from the unit and distributed to other modules. As well as the fingerprint “template,” the analyzed version of the print, you’ll also retrieve the image of a fingerprint and even pull raw images from the optical sensor!

This is the more economical version of the GT-511 which has a decreased memory capacity (compared to the GT-511C3). The module can only store up to 20 different fingerprints but is capable of 360° fingerprint recognition and download and upload templates the usage of serial interface. If you’re on a budget and need only a small number of fingerprints stored, this is the perfect option for you!

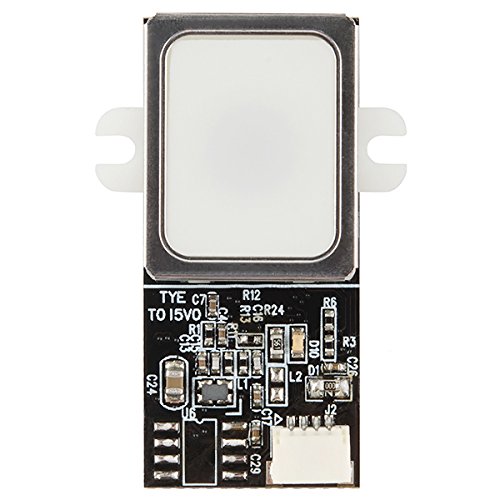

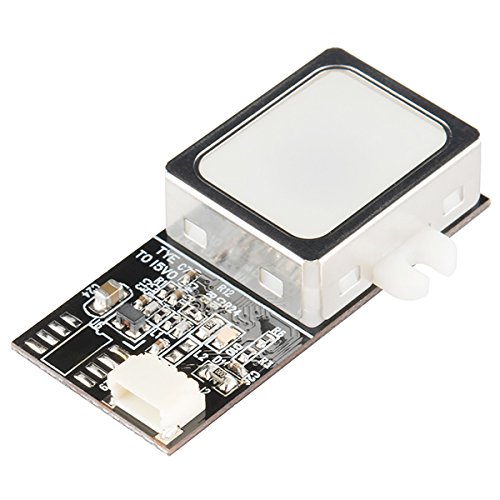

The module is small and easy to mount the usage of two mounting tabs on the side of the sensor. The on-board JST-SH connector has four signals: Vcc, GND, Tx, Rx. A compatible JST-SH pigtail may also be found in the related items below. Demo software for PC is available in the documents below, simply connect the module to your computer the usage of an FTDI Breakout and start the software to read fingerprints!

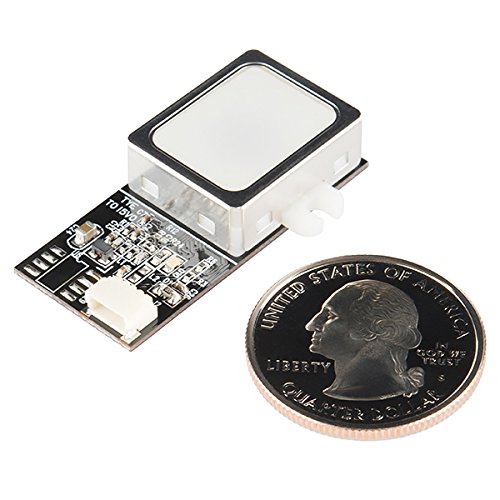

Dimensions: 37 x 17 x 9.5 mm

Attachment cable included
High-Speed, High-Accuracy Fingerprint Identification the usage of the SmackFinger 3.0 Algorithm
Download Fingerprint Images from the Device
Read and Write Fingerprint Templates and Databases
Simple UART protocol (Default 9600 baud)
360° Fingerprint Recognition
