DAC HAT Digital-to-Analog Converter for the Raspberry Pi (384kHz/32bit, line out, headphones out)

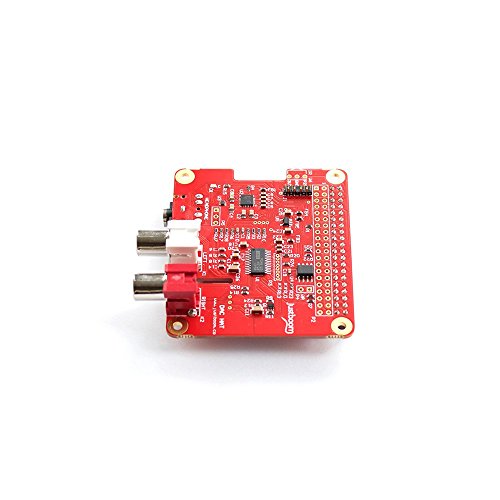

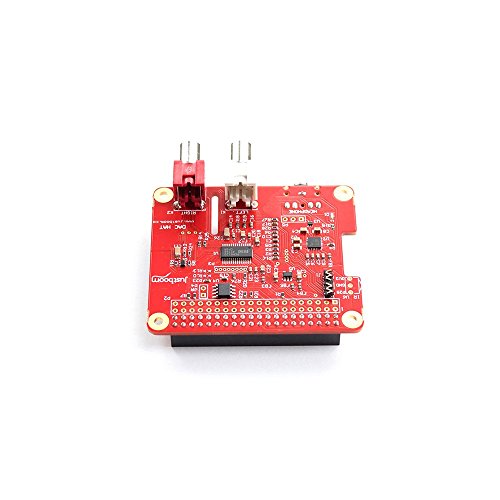

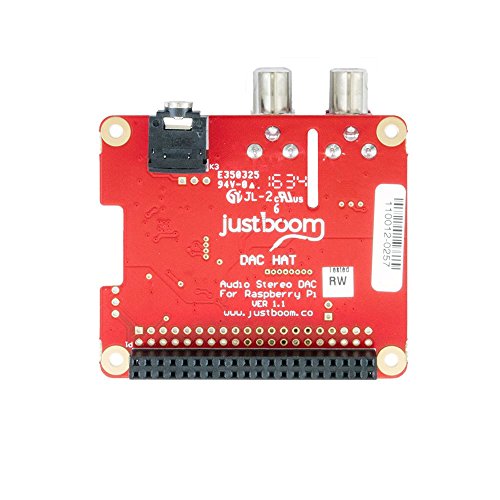

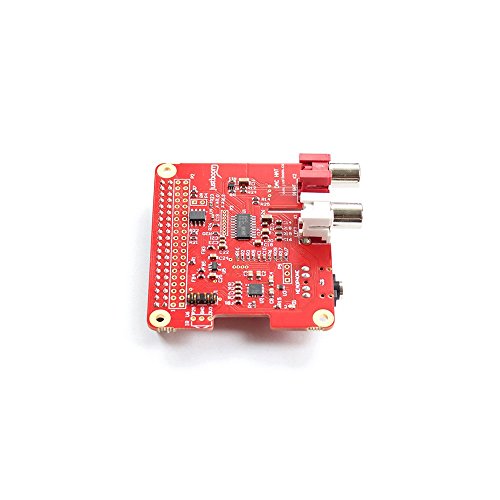

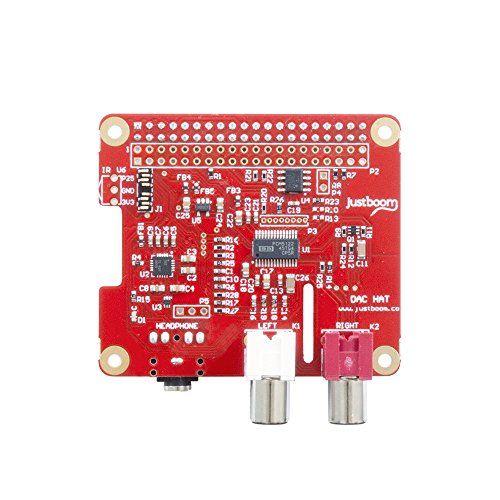

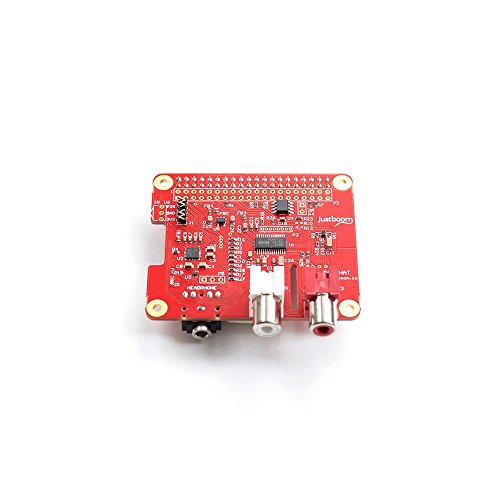

The JustBoom DAC HAT is a plug and play, high resolution, digital-to-analog converter for the Raspberry Pi. Stack the add-on board onto your Raspberry Pi A+, B+, 2B or the new 3B and it’s ready to use!

The DAC HAT incorporates a 384kHz/32bit DAC chip with hardware volume mixing as well as a 138mW headphone amplifier (note that the Raspberry Pi is only capable of a 192kHz/32bit output). Outputs are line level over RCA and headphone amplified over 3.5mm jack cable. The HAT uses the I2S interface for its audio input to reduce CPU load on the Raspberry Pi compared to USB solutions. It is also powered directly from the GPIO header so no extra cables or power supplies are required. All of the GPIO pins are still accessible on the DAC HAT for further customisation of your project.

Features

• Full high quality audio – 384kHz / 32bit
• Includes both a DAC (digital to analog converter) and headphone amplifier
• Line-level RCA and headphone amplified 3.5mm jack outputs
• Plug and play compatibility for ease of use
• Hardware and software volume control from your Raspberry Pi
• No soldering required
• Powered by the Raspberry Pi GPIO header
• Compatible with Raspberry Pi A+,B+, 2B and the new 3B (and also compatible with the Raspberry Pi Zero, but we would recommend the JustBoom DAC Zero for this purpose)
• Mounting hardware included
• Optional IR receiver included in package
• Compatible with the JustBoom Amp which can easily stack on top of the DAC HAT to add amplification and extra outputs!
• All Raspberry Pi GPIO pins still accessible via 40pin unpopulated extension header
• Our Raspberry Pi DAC is fully HAT compliant
• Full driver support in Raspbian
• Compatible with OSMC / RuneAudio / Volumio / Moode / PiCorePlayer / PiMusicBox / OpenELEC and others
Full high quality audio – 384kHz / 32bit
Includes both a DAC (digital to analog converter) and a headphone amplifier
Line-level RCA and headphone amplified 3.5mm jack outputs
Compatible with Raspberry Pi A+,B+, 2B and the new 3B (and also compatible with the Raspberry Pi Zero, but we would recommend the JustBoom DAC Zero for this purpose)
Powered by the Raspberry Pi GPIO header. No soldering required; mounting hardware included.
