Crazepony FPV Micro AIO Camera 5.8G 48CH 25mW Transmitter with Y Splitter for FPV Drone Like Blade Inductrix etc

Specification
Output power: 25mW
Supply Voltage: 2.9-5.5v
Size : 47 * 14.8 * 12.5 mm
Weight: 3.6g
Antenna： Exclusive Dipole Whip Antenna
Power consumption: 2 hundred~215MA5V DCIN
Frequency: 5.8GHz 5 bands 48 channels, with Raceband: 5362~5945MHz
Field of view: 120 degrees viewing angle
Operating Temperature: -10℃~+60℃
Ambient temperature:：25℃
Channel SEL:Touch Switch
Channel Indicate:CH1~CH8 Channel indication with 8LEDS and A~F frequency, group Indicate with 6LEDS
Modulation sort：FM
Transmit power: thirteen±1dBm
Frequency keep an eye on: PLL
All harmonic: Max -50dBm
Frequency Stability: ±100KHz (Typ.)
Frequency precision: ±200KHz (Typ.)
Channel Carrier error: 1dB
Antenna Port: 50 Ω
SENSOR:PAL: 720X540/NTSC:640X480 1/4″
LENS ANGEL: H:120°/V:one hundred°
Base-band interface: (P1.27*2)
Profile dimension: 14.5mm*12.2mm+14.5mm*12mm

Package Including

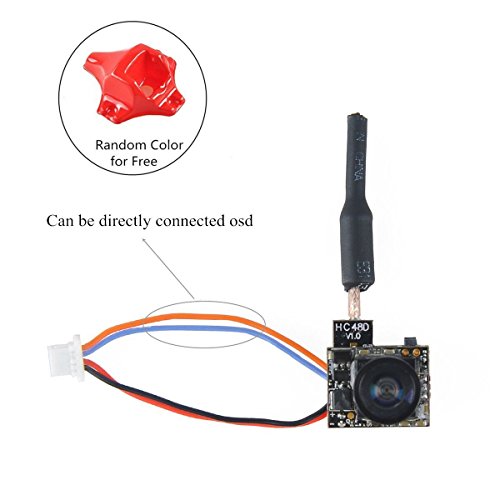

1 * FPV Micro AIO Camera1 * Micro JST 1.25 to 2 Pin Wafer Cable 1.5cm Y Splitter
FPV Micro AIO Camera 5.8G 48CH 25mW Transmitter with micro JST 1.25 to 2 Pin wafer cable 1.5cm Y splitter for tiny whoop Blade Inductrix .

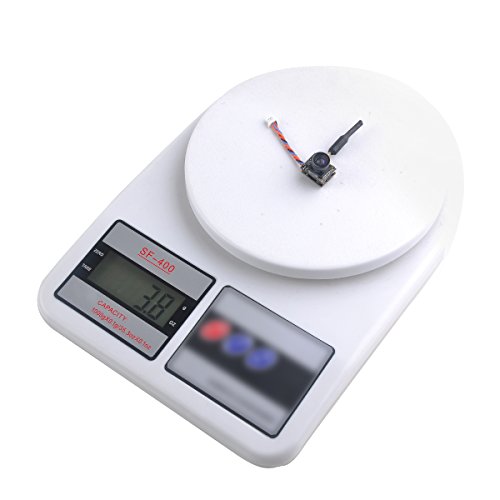

Light weight most effective 3.6g, Small size with 47 * 14.8 * 12.5 mm.

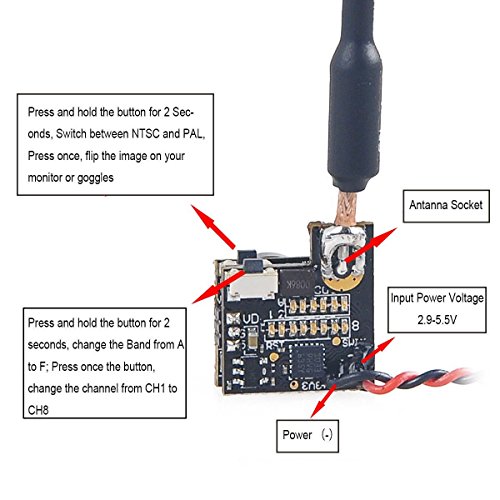

Supporting touch switch make a choice channel Frequency group,Supporting NTSC/PAL switch, Give a boost to vertical inverted symbol switch.
8LED display channel and 6LEDS display frequency group information, 1LED display PAL/NTSC and FLIP information.
Wide lens angle. Miniature and light-weight weight design
