Specifications

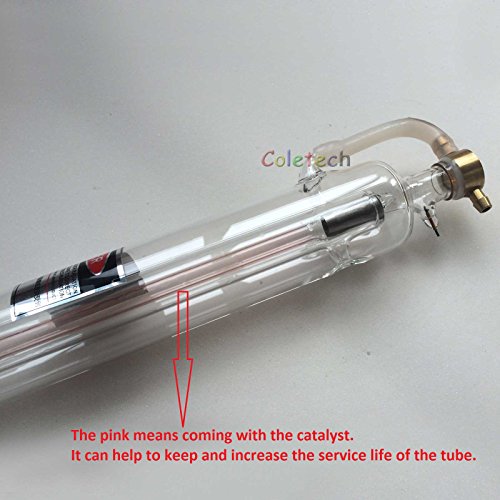

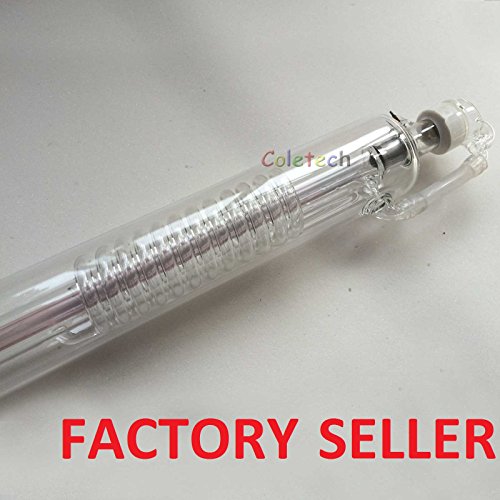

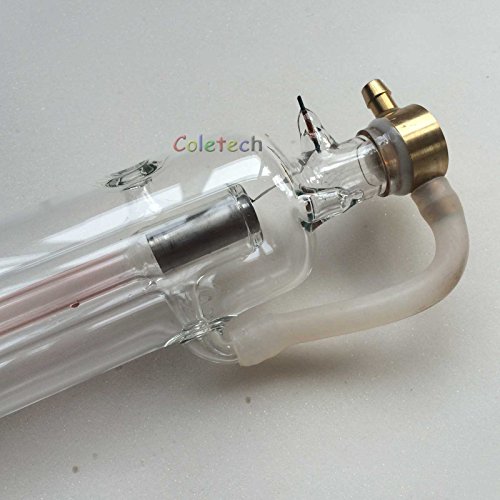

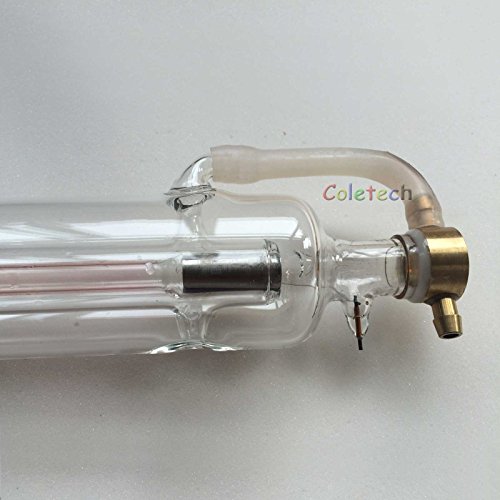

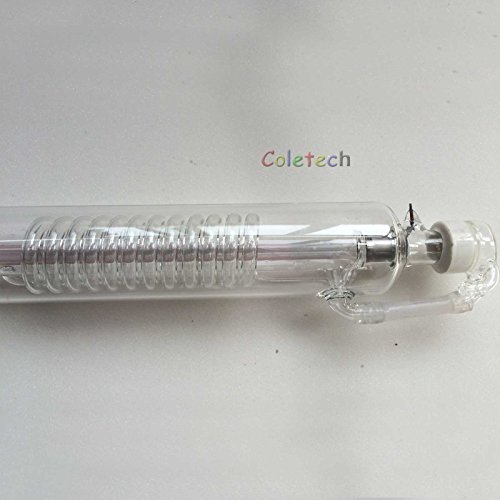

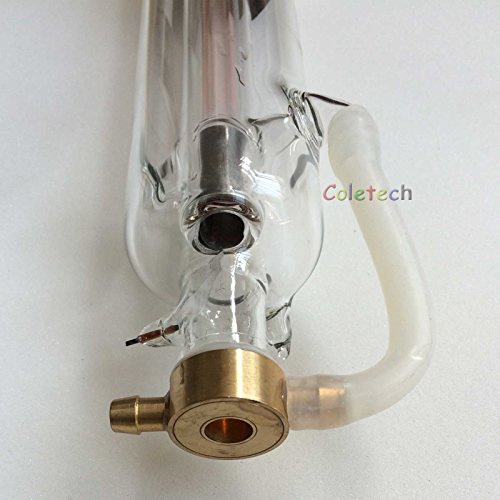

CO2 laser tube
Power :180W
optional
Wavelength 10600nm
Beam diameter:7-8mm
Actual output(W): 180-200W
Triggering voltage(KV): 35
Operating voltage(KV): 25
Operating current(mA): 40
Outer diameter(mm): Φ100±2
Length(mm): 2000
Power stability: ≤ ±5
Service life:about 4000 hours
Shipping and insurance:
1.Generally,we send the tube by DHL air express.The delivery time is about 3-4 working days
2. We insure the tube when ship,if there is any broken in transport, we will send the new one free again.
3.The buyer must report to us and courier within 1 business days when receive it if broken. If failed to do so; this will result in rejection on all claims.
1.All glass CO2 laser tubes in current market are produced in China and in fact it’s not suitable for storage,it’s better to buy when use.
2.We produce the CO2 Laser tube by ourselves and sending them from our factory in China,so ensure the latest manufacturer date,longest service life.
3.Our tube is universal model,compatible with the most of popular laser engraver from China! Not sure,contact with us.
4.The tube can replace any same or different length 150W CO2 laser tube from China.If the length is difference,you only need to adjust light path.We ‘d like to provide the guidance.
5.We also supply the other power tube(30W-200W),please contact with us if you need.
