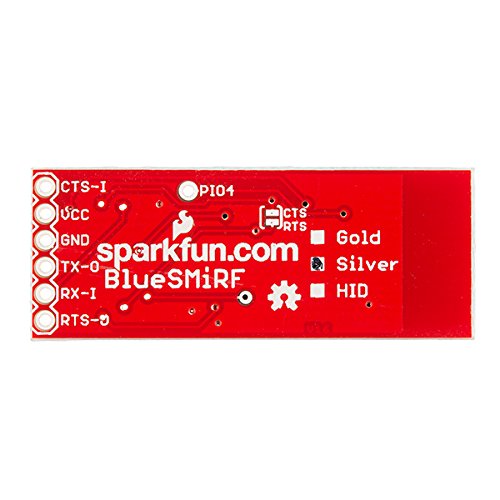

Bluetooth Modem – BlueSMiRF Silver

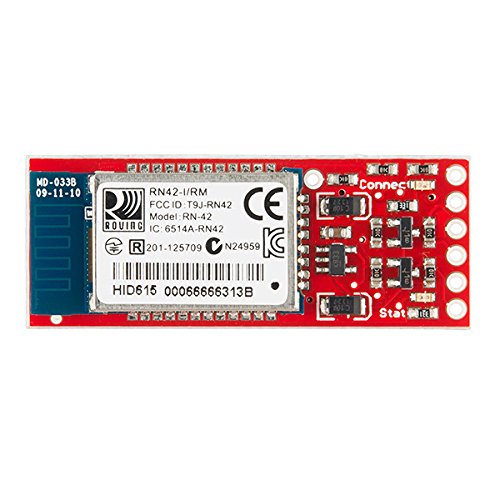

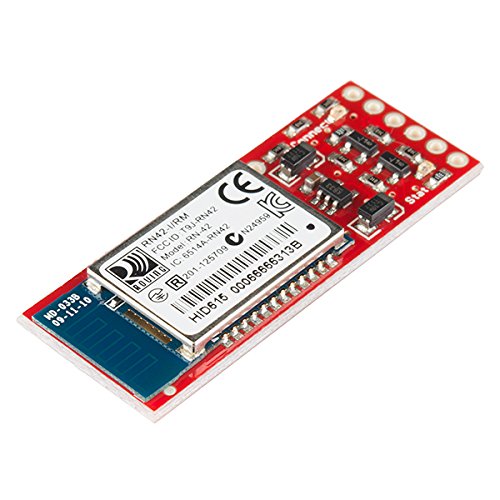

Description: The BlueSMiRF Silver is the latest Bluetoothwireless serial cable replacement from SparkFun Electronics! This version of the popular BlueSMiRF uses the RN-42 module which has a bit less range than the RN-41 module used in the BlueSMiRF Gold. These modems work as a serial (RX/TX) pipe. Any serial stream from 2400 to 115200bps can be passed seamlessly from your computer to your target.

The remote unit can be powered from 3.3V up to 6V for easy battery attachment. All signal pins on the remote unit are 3V-6V tolerant. No level shifting is required. Do not attach this device directly to a serial port. You will need an RS232 to TTL converter circuit if you need to attach this to a computer.

Specifications:

• FCC Approved Class 2 BluetoothRadio Modem

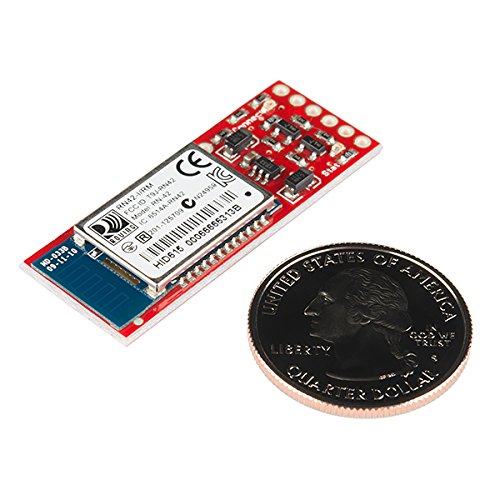

• Extremely small radio – 0.15×0.6×1.9″
• Very robust link both in integrity and transmission distance (18m)
• Hardy frequency hopping scheme – operates in harsh RF environments like WiFi, 802.11g, and Zigbee
• Encrypted connection
• Frequency: 2.4~2.524 GHz
• Operating Voltage: 3.3V-6V
• Serial communications: 2400-115200bps
• Operating Temperature: -40 ~ +70C
• Built-in antenna

Dimensions: 45×16.6×3.9mm

This is a single unit only. We recommend the purchase a USB dongle to interface to a computer if you do not already have access to a computer with Bluetooth connectivity.

Extremely small radio – 0.15×0.6×1.9″
Very robust link both in integrity and transmission distance (18m)
Encrypted connection
Frequency: 2.4~2.524 GHz
Operating Voltage: 3.3V-6V
