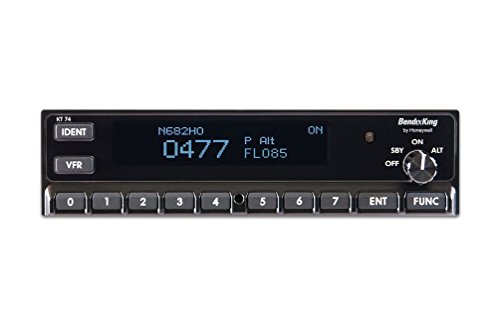

Bendix/King KT-74 ADS-B Mode S Transponder

If a new transponder is on your “to-get” list, you may want to select one that’s both relevant now and someday. The KT 74 transponder from Bendix/King is the perfect upgrade to the preferred KT 76A/C and KT 78A models, with a ‘plug and go’ capacity. And it’s ADS-B compliant, subsequently meeting all 2020 requirements. It is low-cost, easy to install and fits into your existing panel. Suiting your needs now and someday. KT 74 ADVANTAGE Retrofit – ‘plug and play’ installation Low-cost solution on the way to offset future costs Low power consumption ETSO and TSO approved Mode S Accurate readings with updates each and every few seconds More efficient routing and better situational awareness Meets ADS-B 2020 requirements* FACTS ON THE FLY: ADS-B will result in better communication between pilots and air traffic controllers for more efficient routing and resource management Anyone who flies a Mode C or Mode S transponder will want to be equipped with ADS-B “Out” by 2020 Radar controls may also be 12 seconds out of date ADS-B “Out” means you’re broadcasting your position information to ground stations and other aircrafts For STC information submit request at time of order The Peregrine Switch Kit is required for installation per STC Part Number: 10-05913.
TypeClass 1 Mode S Level 2 els
CertificationTSO C112D, C166B and ETSO C112C, C166B
ComplianceDO-160G, DO-181E, DO-260B Class B1S, DO-178B Level B, DO-254 Level C
Supply Voltage (DC)11 – 33 V
Typical Current Consumption (at 14V)Idle: 0.22 A, Active: 0.45 A
