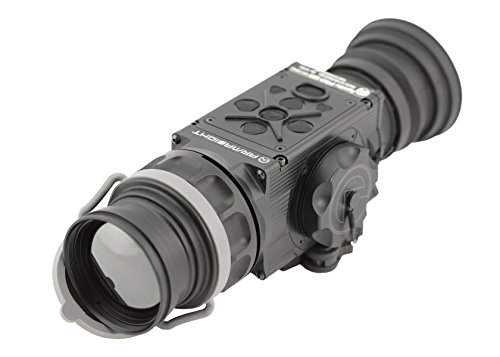

Armasight by FLIR Apollo-Pro MR 640 50mm Thermal Imaging Clip-on System with FLIR Tau 2 640×512 17 Micron 30Hz Core

DESCRIPTION:

The Apollo Pro family of Clip-on Thermal Imaging Devices represents Armasight’s premier day/night thermal clip-on product displaying the best and latest in advancements developed by Armasight in the field of uncooled thermal imaging technology for the dismounted soldier, special law enforcement team member, and professional hunter. The Apollo Pro epitomizes Armasight’s 20/50-design gold standard, which is defined from product inception as being capable of withstanding 20 meters immersion for 2 hours, and engineered for routine use with 0.50 BMG weapon shock and recoil. Based around common core electronics, signal processing, and infinity focused large-format collimating eyepiece, the Apollo Pro Series Day/ Night Clip-on Thermal Imaging.
Device is available in plenty of options and price points that cater to every application – military and commercial. The Apollo Pro MR 640 50mm (30 Hz) is a solid state, uncooled, long-wave infrared, 1X (unity magnification) Clip-on Thermal Imaging Device for day and night engagements. It mounts directly in front of the variable magnification sniper day sight without the wish to remove the day sight from the weapon. Collateral applications of the Apollo Pro Thermal Imaging Device include functionality as a unity magnification (1x) stand-alone weapon sight and handheld uncooled thermal monocular. For the collateral duty functions, Armasight has included a compass and inclinometer in the Apollo Pro package for finer range estimation and target orientation. A five-button wireless remote switch is included to operate and modify the settings on the Apollo Pro to optimize the imagery for the viewed scene without having to remove your hands from the weapon. The Apollo Pro has Bluetooth wireless capability and can directly interface with most smart phones with the opportunity of engaging a series of current and future applications.
Armasight has introduced a unique dual battery option for the Apollo Pro Clip-on Thermal Imaging Device, consisting either of four 3.0VDC 123A batteries (all oriented in the same direction to prevent confusion in replacement), or four 1.5VDC AA batteries pre-loaded in a cartridge. In a pinch, the Apollo Pro special power-management feature allows the usage of a single 3.0VDC 123A battery for just over an hour.

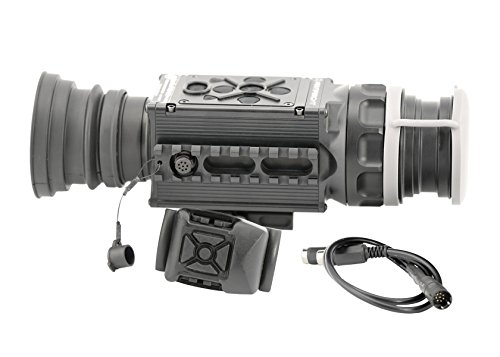

The Apollo Pro uses the same 9-pin multi-pin connector to provide video-in imagery, where there may be a need for map or rangefinder display overlays, and external power access. In enhance of these capabilities, Armasight offers an optional laser range-finder, external battery pack, multispectral laser and other accessories designed to attach on the MIL-STD-1913 rail of the Apollo Pro to feed the desired overlay or input power into the Clip-on Thermal Imaging Device. The 9-pin connector is also capable of providing a portal for periodically upgrading the Apollo Pro software directly; as new revisions turn out to be available, users can download updates directly from the internet.
Apollo Pro weapon installation is easy, repeatable, and reliable based on a user-friendly MILSTD-1913/Weaver/Picatinny rail compatible, quick-release locking mechanism. This device is most often used in the “Reticule Off/ No Reticule” mode. On the other hand, when used in the collateral role of a 1X stand-alone weapon sight, the solid state technology reticule adjustments and software algorithms — combined with a complementary color reticle platform — ensure maximum reticle contrast, high-level target accuracy, and boresight retention that cannot be achieved with mechanical boresight adjusters and traditional ballistic drums. This level of accuracy is translated into the tracking electronic zoom (e-zoom) function of the Apollo Pro, when used as a 1x weapon sight, which can be progressively increased from 1x to 2x to 4x to 8x without changing the point-of-aim to point of-affect relationship of the targeting reticle.
Based on its superior price-to-performance value, the Apollo Pro Clip-on Thermal Imaging Device represents the most versatile and sophisticated Armasight product available in today’s market for hunters, SWAT teams, and military personnel who need to use their own sniper day scopes.

FEATURES:

• 24/7 Operation in presence of environmental obscurants (smoke, dust, haze, fog)
• Superior engineering and design from inception to Armasight’s 20/50 standard
• Rugged MIL-STD-810 compliant performance
• Operates on 123A or AA batteries
• Reliable quick-release locking weapon mount
• Objective Germanium Lens
• TAU-2 17 micron Pitch Thermal Sensor
• SVGA 800×600 OLED Display
• Digital Compass
• Digital Inclinometer
• Battery Status Indicator
• Multiple User
• Selectable Ballistic and Quick Acquisition Reticules
• Selectable Reticule Color
• Selectable Palettes: White Hot/Black Hot/Sepia/OEM Custom/Other Color Variants
• Imaging Filter Algorithms:
• – Active Contrast Enhancement (ACE)
• – Smart Scene Optimization (SSO)
• – Information Based Histogram Equalization (IBHEQ)
• – Second Generation Digital Detail Enhancement (DDE)
• – Silent Shutterless Non-uniformity Correction (SSN)
• Wireless 5-button Remote
• Tracking Digital e-Zoom: 2x, 4x and 8x
• Still Picture and Video Recording Capability (Mounted DVR Option)
• Made In the USA

SPECIFICATION:

• Magnification Unity (1x)
• Refresh Rate 30 Hz
• Objective Lens Type Germanium
• Type of Focal Plane Array FLIR Tau 2
• Pixel Array Format 640×512
• Pixel Size 17 micron
• Display Type AMOLED SVGA 060
• Pixel Display Format 800×600
• Objective Focal Length 50 mm
• Objective F-number 1:1.4
• Battery 4 each 123A 3.0VDC or 4 each AA 1.5VDC
• Battery Life at 20 °C (68 °F) > 6 hr (optional up to 14 hours)
• External Power Supply Optional Extended Battery Pack with rechargeable batteries (up to 8 hours) or 6 VDC/ 1А external power source
• Operating Temperature -51 to +57°C (-59 to +134°F)
• Storage Temperature -57 to +85°C (-70 to +185°F)
• Dimensions, mm/in 217x76x76 / 8.5×3.0x3.0
• Weight 0.72 kg / 1.6 lbs

FLIR Thermal Imaging Camera
3-year warranty and 10-year warranty on FLIR detector
Compact, lightweight, durable housing
High-resolution thermal imaging
High-end OLED display and Video output
Export Restriction By adding to cart I agree that I do not intend to export this product outside of the USA
