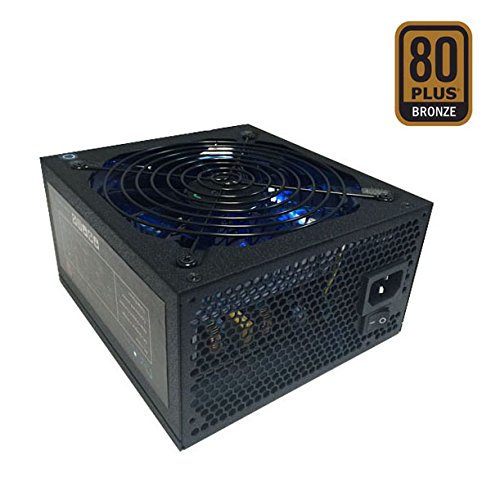

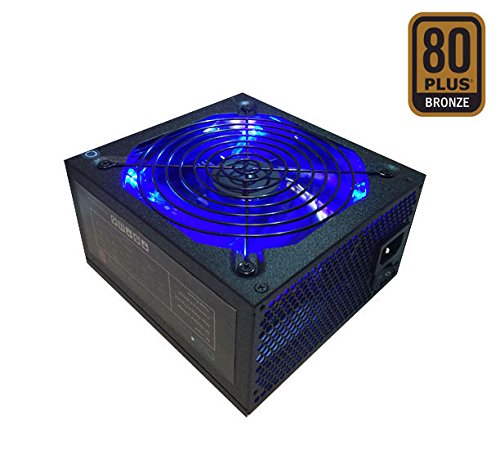

Apevia ATX-JP1000W Jupiter 1000W 80 Plus Bronze Certified Active PFC High Performance ATX Gaming Power Supply, Support Dual/Quad Core CPUs, SLI/Crossfire/Haswell, – Quiet, Best Value

Apevia Jupiter series power supply is 80 Plus Bronze certified. It offers spellbinding performance for high-end PC gaming rigs and extreme systems that demand the most reliable and efficient energy source. This versatile PS supports NVidia SLI, as well as ATI crossfire and Haswell. The Jupiter series is also ideal for dual and quad core CPUs. The super-silent thermally controlled automatic sensor regulates fan speed while reducing noise. And a powerful 135mm led fan delivers outstanding ventilation. • Model No.: ATX-JP1000W • Max. Power : 1000W • Material : Metal • Color : Black • Switches : Additional Power Switch 115/230 Volt Selector Switch(1)Product Features: • Stable and Reliable • 80 Plus Bronze Certified • Universal AC Input by Active PFC (99% PF Typical) • Cosmic Black Casing • Supports Single 12V Output for Higher Power Usage • Supports ATX 12V 2.3 Version • Supports Dual/Quad Core CPUs • Supports SLI, Crossfire & Haswell • Top Quality Large Japanese Made Capacitor • Automatic Thermally Controlled 135mm Blue LED Fan • Low Noise • All Cables are Sleeved • Heavy Duty Protections Including OVP (Over Voltage Protection), OPP (Over Power Protection), UVP (Under Voltage Protection) and SCP (Short Circuit Protection) • Double Forward Converter Design (2) Connectors • 1 x 20/24pin Main Power • 4 x 8(6+2)Pin PCI Express • 1 x P8(4+4P) ESP 12V • 4 x 4Pin Peripheral • 4 x Serial ATA • 1 x Floppy (3) Input • Voltage Ranges:115V/230V • Input Freguency:60Hz/50Hz (4)Output • +3.3V@20A, +5V@20A, +12V@74A, [email protected], [email protected] (5) Operating Temperature: The Power Supply Should be Operated in an Ambient Temperature of 0°C to 40°C (6) Overall Performance: • Total Output Power: Full Load at Normal Line Input Voltage. • Hold up Time: 17ms at Full Load normal Line Input Voltage. • Switching Frequency: 50KHz at Normal Line Input. • Stability: +/- 5% for 24KHR after Warm Up. (7) Product Dimension: 150mm x 158mm x 86mm (5.9″ x 6.2″ x 3.4″) – W x L x H (8) Product Weight: 4 lbs
Apevia ATX-JP1000W Jupiter 1000W 80 Plus Bronze Certified Active PFC High Performance ATX Gaming Power Supply – Stable, Reliable, Silent, Best Value

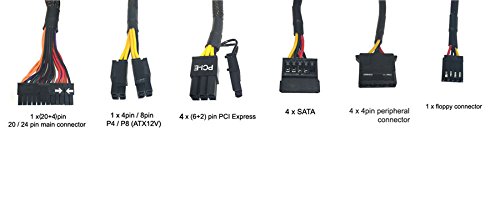

Connectors: 1 x 20/24pin Main Power, 1 x P8(4+4P) ESP 12V, 4 x SATA + 4 x 8(6+2)pin PCI-E, 4 x Peripheral, 1 x Floppy. Supports Single 12V Output for Higher Power Usage

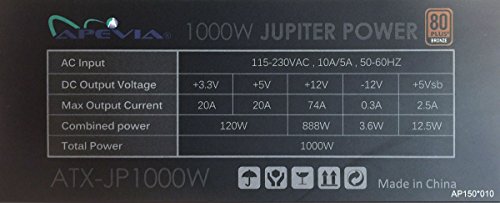

Low Noise Auto-Thermally Controlled Blue LED 135mm Blue LED Fan. Output: +3.3V@20A, +5V@20A, +12V@74A, [email protected], [email protected]. 115/230V Switch.
Supports ATX 12V 2.3 Version. Supports Dual/Quad Core CPUs. SupportsSLI/Crossfire/ Haswell. Top Quality Large Japanese Made Capacitor. All Sleeved Cables.
Double Forward Converter Design. Heavy Duty Protections: Short-Circuit/ Over-Voltage/ Over-Power/ Under-Voltage Protections
