Note: This Version Comes with Head Tracker.
Specifications:
Display FOV: 32°
Ratio: 16:9, 4:3
Lens: Glass optics (binocular)
Resolution: 854×480(WVGA)LCD display, LED backlight
3D serve as: Side/Side 3D
Interpupillary Distance: Adjustable 59-69mm
Audio Output: Stereo
Video Format:NTSC / PAL auto switch
HD Input:Improve 720p,C-type HDMI port
Operation:Brightness / contrast / channel variety / display mode /DVR / head tracker
Auto Scan:One key starts auto search the channel of strongest signal
Head Tracker: 2-axis head tracker (come with)
DVR Recording:
1. Just for RF and AV in mode
2. TF card Improve as much as 32GB
3. video compression format: MJPG 30fps
Built-in 40CH Diversity Receiver:
1. Dual 40CH high-sensitivity diversity RF module,
2. Auto switch to strong signal antenna
3. Channel display on screen
Interface:
1. DC in: usual 5.5*2.1 (inner positive outer negative)
2. AV in: 3.5mm four-pole AV jack port
3. Audio: 3.5mm three-pole earphone jack port
4. Head tracker: PS2 data port
5. TF card slot for recording
Working Voltage Range:DC 7-18V (2S-4S), OSD display voltage status
Working Environment:- 0 – 55°C
Unit Weight: 172g
Package Size: 230*165*77mm
Package Includes:

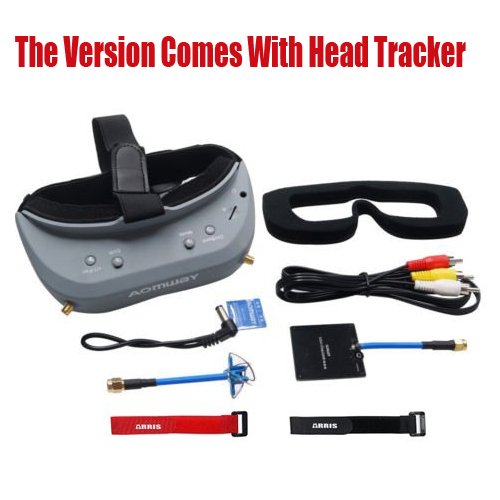

1 x Aomway Commander V1 FPV Goggles
2 x 5.8G Antenna
1 x Carring Case
3 x Cable
2 x Foam (Thin and Thick)
1 x User Manual
2 x ARRIS Battery Straps
That is the upgraded version with Head Tracker Version.
With the HDMI port, it supports 720P and 3D signal inputs.
It comes with 5.8G 40CH built-in diversity high-sensitivity diversity module,DVR serve as and head tracker.
Aomway Commander FPV goggles comes with 16:9 and four:3 switchable display radio with 32°FOV.
The goggle also comes with high-speed ventilating fan installed to stop fogging up on screens.
