Aobelieve 4K 1×4 Powered HDMI Splitter 1 in 4 Out

Aobelieve 1×4 HDMI Splitter

Distribute the input HDMI signal to 4 indentical HDMI outputs concurrently.

Product Specs

HDMI version: 1.4
HDMI resolution: as much as 3840 x 2160 / 30Hz
Improve video format: 8 / 10 / 12 bit deep color
Improve audio format: DTS-HD / Dolby-trueHD / DTS / Dolby-AC3 / DSD
Max bandwidth: 340 MHz
Max baud rate: 3.4 Gbps
Input cable distance: (1080p resolution) ≤ 15m, (4K resolution) ≤ 8m AWG26 HDMI usual cable
Output cable distance: (1080p resolution) ≤ 15m, (4K resolution) ≤ 8m AWG26 HDMI usual cable
Max working current: 1200 mA
Power adapter format: input AC (50Hz, 60Hz) 100V-240V; Output DC 5V
Operating Temperature range: (-15°C to +55°C)
Dimensions: 3.74 x 0.86 x 2.41 inch
Weight: 0.24 lb

Compatible with:

Xbox 360, Xbox One, Playstation 3, Playstation 4, Beamer, DVB receiver, TFT monitor, HD Able or Full HD TV, Blu-Ray, DVD or HD-DVD players and so forth.

Package Contents

1 x Aobelieve 1×4 HDMI Splitter
1 x Power Adapter
1 x User Manual

Worry-Free Warranty

Backed by an Aobelieve 18-Month Worry-free Warranty.

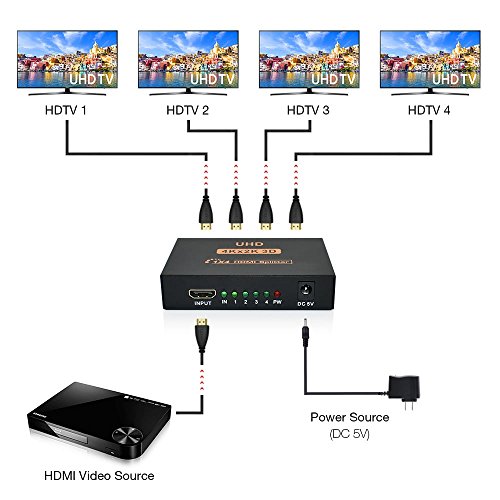

Splits a HDMI signal from a source (eg: Sky HD / PS3 / PS4 / XBox 360 / Xbox One / Blu-ray) to 4 HD displays (eg: HDTV / Plasma / LCD / Projector). View on more than one displays concurrently. Outputs are synchronized and amplified.
Supports High Definition Audio formats such as Dolby-TrueHD and DTS-HD Master Audio, LPCM 7.1, DTS, Dolby-AC3, DSD. Supports all HDTV video resolutions as much as 3840x2160p at 30Hz
HDCP Compliant. 24k Gold connectors and full metal housing. RoHS compliant. ATC Tested. Supports 3D TV, Games.
Plug & Play Technology: There’s no configuration for this unit, just plug cables in and you’re ready to move.
What You Get: Aobelieve 1×4 HDMI Splitter, Power Adapter (US DC/5V), welcome guide, our worry-free 18-month warranty and friendly customer service.
