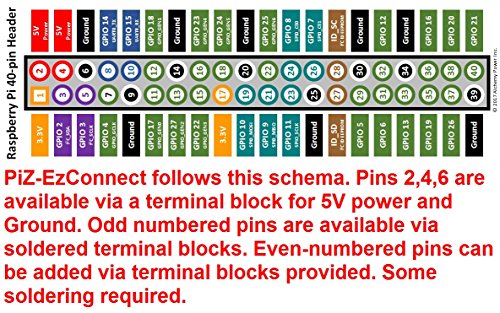

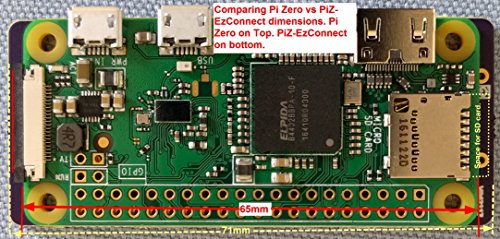

PiZ-EzConnect allows connection to any Raspberry Pi header pins via a terminal block. Any project that was done with a P 3 or a Pi 2 can now be done with a Pi Zero or Pi Zero W. The form factor follows the Pi-Zero dimensions (see image on dimensions included.) PiZ-EzConnect is a nice, compact, easy to use board for connecting GPIOs or power to a Raspberry Pi. PiZ-EzConnect exposes the 40-pin header available on a Raspberry Pi. All odd numbered pins are accessible via terminal blocks. Pins 2, 4 and 6 are exposed via a soldered terminal block as those pins provide Power and Ground. Other even numbered pins are left to the discretion of the user. If needed, these pins can be used using the additional terminal blocks provided. A male header block is included for Pi Zero or Pi Zero W, as these do not do not have a header soldered on. PiZ-EzConnect can be used wherever the Pi-EzConnect is used. The compact form factor makes it convenient for use with Pi Zero, Pi Zero W, Pi 2, Pi 3 or other Raspberry Pi clones conforming to the Pi-HAT standards. These include OrangePi, Asus Tinker Boards and other boards. Some soldering required.
Use the Raspberry Pi to its full extent. Connect multiple GPIOs to multiple sensors and other electronic devices using PiZ-EzConnect.
Ideally suited for use with Pi Zero or Pi-Zero W. Solder-less connections for power (5V, 3.3V, Ground).
Exposes Raspberry Pi Zero headers with easy to connect terminal-blocks. Fits Pi Zero, Pi Zero W, Pi 2, Pi 3 or other Pi clones (e.g. Asus, OrangePi) with 40 pin headers.
Compact footprint. Fully documented connections on top and bottom layers. Use the Pi Zero instead of a Pi 2 or a Pi 3 for your projects.

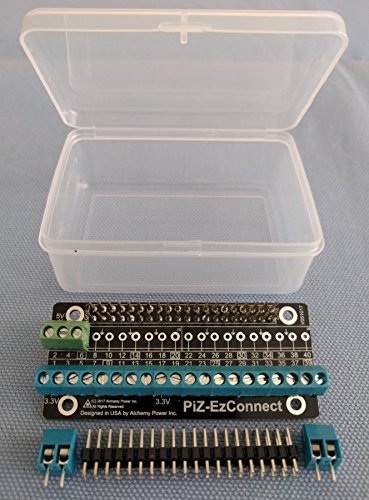

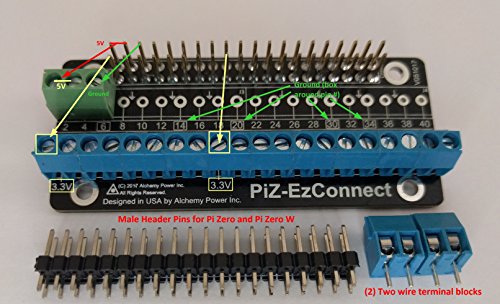

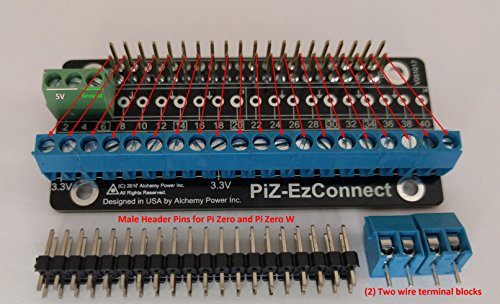

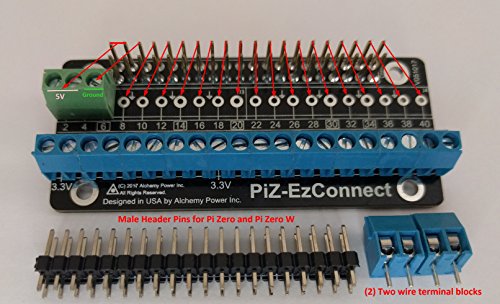

Includes male headers for Pi Zero and two additional terminal blocks. 40 pin header is soldered on board. Header pins can be snipped off to save space.
Alchemy Power Inc. Pi-Zero-EzConnect. Pi-Zero size GPIO connector. A HAT to connect GPIOs and sensors to Raspberry Pi Zero, Pi Zero W, Pi-3, or Pi-2.
Amazon.com Price: $19.95 (as of 02/06/2019 14:01 PST- Details)
& FREE Shipping.
Product prices and availability are accurate as of the date/time indicated and are subject to change. Any price and availability information displayed on [relevant Amazon Site(s), as applicable] at the time of purchase will apply to the purchase of this product.
Use the Raspberry Pi to its full extent. Connect multiple GPIOs to multiple sensors and other electronic devices using PiZ-EzConnect.
Ideally suited for use with Pi Zero or Pi-Zero W. Solder-less connections for power (5V, 3.3V, Ground).
Exposes Raspberry Pi Zero headers with easy to connect terminal-blocks. Fits Pi Zero, Pi Zero W, Pi 2, Pi 3 or other Pi clones (e.g. Asus, OrangePi) with 40 pin headers.
Usually ships in 24 hours
