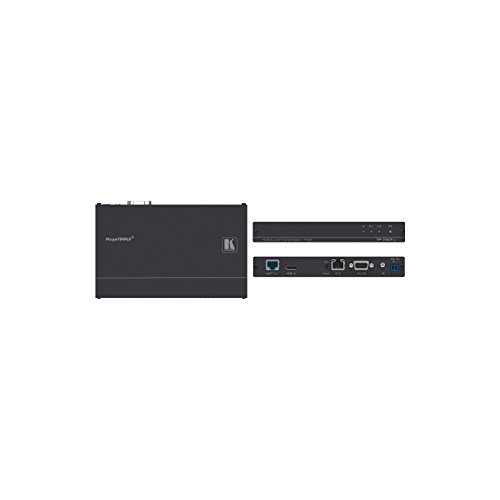

Kramer TP-780TXR | 4K60 HDMI HDCP PoE HDBaseT Transmitter with Ethernet

TP?780TXR is a high?performance, HDBaseT twisted pair transmitter for 4K@60Hz (4:2:0), 2Kx4K HDMI, Ethernet, bidirectional RS?232, IR signals and PoE. The TP?780TXR inputs HDMI, Ethernet, RS?232, and IR signals and converts them into an HDBaseT twisted pair signal that it transmits to a TP?780RXR receiver. The TP?780TXR provides power remotely over Ethernet to the TP?780RXR in places where an external power supply is difficult to reach. The result is that a single HDBaseT LAN cable can provide both data and power to compatible devices.

Reach Extension – Up to 100m (330ft) at 4K @60Hz (4:2:0); up to 130m (430ft) at full HD (1080p @60Hz 36bpp); up to 180m (590ft) at HDBaseT ultra mode and full HD (1080p @60Hz 24bpp), when using Kramer HDBaseT cables
Transmitted Data Bandwidth – Up to 10.2Gbps (3.4Gbps per graphic channel), Transmitter Compliance – Complies with HDBaseT receiver
Video Resolution – Up to 4K@60Hz (4:2:0) 24bpp, HDMI Signal Transmission – HDMI 2.0 and HDCP 2.2 compliant signal, supporting deep color, x.v.ColorTM, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS-HD, CEC, Full HD, 2K, 4K, and 3D
Multi-channel Audio Transmission – Up to 32 channels of digital stereo uncompressed signals for supporting surround sound at studio level, EDID and CEC Pass Through – Passes EDID and CEC signals from the source to the display
Ethernet Transmission – Ethernet interface data flows in both directions to allow extension of up to 100Mbps Ethernet connectivity for LAN communication and device control
